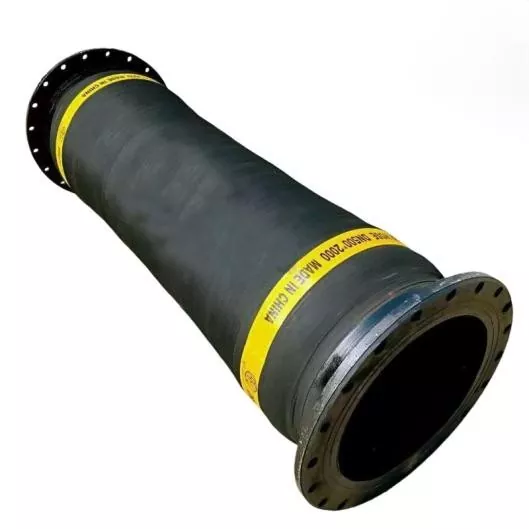

China Large Diameter Slurry Hose Supplier

In heavy industries such as mining, dredging, and mineral processing, the reliable transfer of abrasive and corrosive materials is non-negotiable. The Large Diameter Slurry Hose serves as the backbone of these operations, handling thick slurries, sand, gravel, and chemical mixtures over long distances and under punishing conditions. Unlike standard industrial hoses, a large diameter slurry hose is engineered to resist severe wear, tolerate high working pressures, and absorb vibrations caused by solids-laden fluids. JIDONGDA has spent years perfecting this class of hose, delivering solutions that extend service life and reduce costly downtime.

Applications That Demand High-Performance Slurry Hoses

Large diameter slurry hoses from JIDONGDA are deployed in some of the most demanding environments on earth. Their design accommodates high solids content, variable flow velocities, and constant movement in floating or submerged setups.

Mining and Mineral Processing

Ore concentrates, tailings, and process water contain particles that quickly erode inferior hoses. JIDONGDA’s abrasion-resistant liner and robust construction allow continuous transport without frequent replacement. The hoses handle gypsum, copper tailings, iron ore slurry, and gold mine effluents with equal reliability.

Dredging and Land Reclamation

Dredge discharge operations rely on large diameter slurry hose systems to move sand, silt, and rock from the cutter head to the placement area. Our floating and submerged hoses feature an integral floatation layer or are paired with floats, keeping them buoyant even in severe wave conditions. The hose’s bend-ability ensures smooth curves in the discharge line, minimizing pressure loss.

Power Generation and Fly Ash Handling

Coal-fired plants need to transport fly ash and bottom ash slurries from precipitators to ash ponds. These alkaline, erosive slurries demand hoses with excellent chemical resistance and anti-scaling properties. JIDONGDA’s EPDM-lined large diameter slurry hose series meets these requirements effectively, reducing downtime for line flushing or hose replacement.

Construction and Tunneling

Bentonite and cement-based slurries used in tunneling and foundation works are pumped through large diameter hoses under high pressure. Our hoses’ high burst strength and reliability under pulsating pressures make them the preferred choice for slurry walls and hydrodemolition projects.

FAQs

Can large diameter slurry hoses be used for hot slurry above 80°C?

Yes, but the compound must be rated for high temperatures. Our standard EPDM liners handle up to 120°C with adequate pressure derating. For consistent operation above 82°C, inform JIDONGDA engineers so they can specify a heat-resistant reinforcement and cover system. Prolonged high-temperature exposure can soften standard rubber, so material selection is critical.

How are these hoses connected in the field?

Most large diameter slurry hoses are supplied with fixed, built-in flanges that match common drilling standards (ANSI, DIN, JIS). For temporary or quickly deployed lines, quick-disconnect couplings with lever-actuated clamps can be vulcanized onto the hose ends. JIDONGDA also offers swivel flanges to relieve torsional stress during installation and prevent twisting that could lead to premature failure.

What reinforcement configuration is best for suction applications?

Suction (intake) applications demand a hose that resists collapse under vacuum. A helical steel wire embedded in the casing wall, often combined with multiple fabric plies, provides the necessary crush strength. For deep dredging where suction vacuum reaches -0.5 to -0.8 bar, JIDONGDA selects a double or triple helix construction. The exact configuration is matched to the maximum anticipated vacuum level and hose diameter.

Is it possible to get customized lengths and diameters beyond the standard range?

Absolutely. JIDONGDA specializes in non-standard dimensions. While the table shows common ranges, we manufacture hoses with diameters up to 1500 mm (60 inches) and lengths exceeding 30 meters. Custom lengths reduce flange connections and potential leak points. Contact our engineering team with your specific dimensional and pressure requirements for a tailored solution.

How do I determine the correct wall thickness and liner thickness?

Liner thickness is primarily a function of expected wear rate and desired service interval. We often start with a sample analysis of your slurry (particle size, hardness, pH, and concentration). Using abrasion test data from our laboratory, we predict annual wear in millimeters and then add a safety factor. For instance, if the predicted wear is 3 mm/year and you want a 4-year life, a liner thickness of 15 mm would be recommended. JIDONGDA provides a wear-life estimation report with every bespoke hose order.

Partnering with JIDONGDA for Your Needs

By combining advanced material science with decades of application expertise, JIDONGDA delivers large diameter slurry hoses that set the benchmark for durability and performance. Our global footprint means rapid response to inquiries and technical support in your time zone. From initial specification to field service, we remain committed to solving the toughest slurry transfer challenges. Reach out to discuss your project, and let us provide a tailored solution that matches the demands of your operation precisely.
