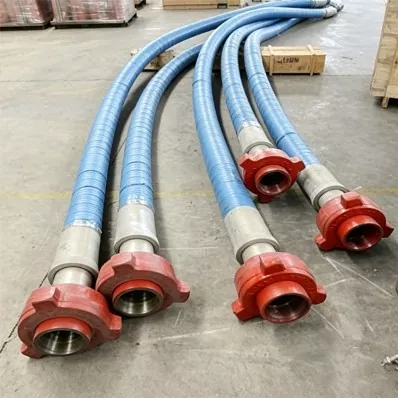

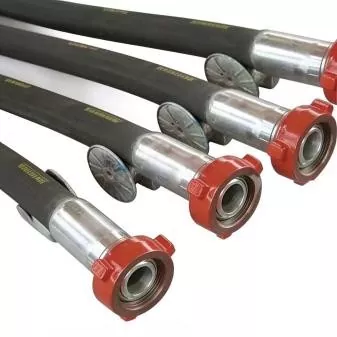

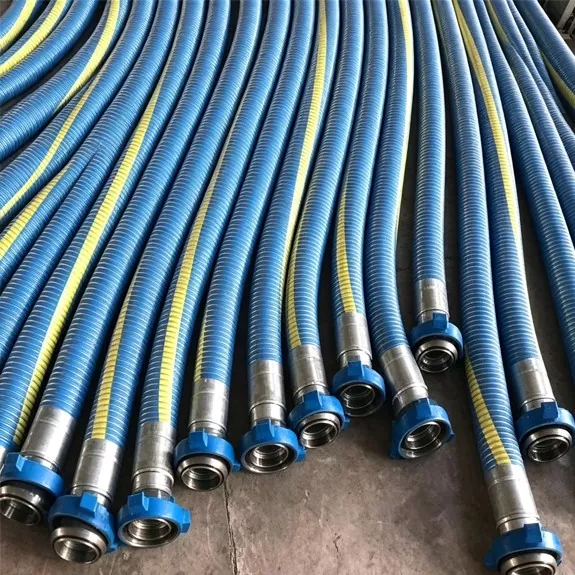

Large Diameter Oilfield Drilling Mud Hose

The JIDONGDA Large Diameter Oilfield Drilling Mud Hose is engineered for the demanding conditions of oilfield drilling, effectively addressing hose failures caused by high-pressure surges, mud-induced erosion, and mechanical stress. Its optimized inner lining—designed to handle high-sand-content mud—significantly reduces wear and hydraulic resistance. A multi-layer composite structure absorbs the sudden pressure surges generated by mud pumps, while the outer cover provides resistance to oil, weathering, and abrasion, ensuring reliable performance across diverse environments, including onshore fields and offshore drilling platforms.

Product Construction

1. Inner layer: Oil- and abrasion-resistant synthetic rubber; material options include NBR, NR, or EPDM.

2. Reinforcement layer: Multi-layer high-strength steel wire winding combined with high-density synthetic fiber cord; ensures high tensile and compressive strength.

3. Structural layer (pressure-bearing): Steel wire spiral framework prevents flattening and eliminates deformation under negative pressure.

4. Outer protective layer: Abrasion- and UV-resistant rubber cover; suitable for harsh outdoor operating conditions.

5. End connections: API standard steel flanges or clamp connections; custom configurations available.

Key Operational Characteristics

All JIDONGDA Large Diameter Oilfield Drilling Mud Hoses have undergone testing under conditions simulating actual service, confirming their reliability and safety:

1. Burst pressure: Exceeds working pressure by 3.5–4 times without cracking or structural failure.

2. Impulse load resistance: Withstands over 50,000 impulse pressure cycles without structural damage.

3. Abrasion resistance: Wear rate under drilling fluid flow is 40% lower compared to standard rubber hoses.

4. Temperature range: Stable continuous operation at temperatures from -30°C to +120°C.

5. Deformation resistance: Large-diameter models (DN200 and above) maintain the integrity of the flow cross-section and ensure stable fluid transport.

Practical Application Example

Project Description: A drilling fluid recovery system for an offshore drilling platform in Southeast Asia. Operating conditions involved peak cyclic pressures of up to 42 MPa, the pumping of fluid with high sand and drill-cuttings content, platform movement due to sea swells, and exposure to salt spray. Standard hoses previously used failed after approximately 45 days due to wear and loss of seal integrity, resulting in frequent replacements and high costs associated with equipment downtime.

Operational results: After switching to JIDONGDA hoses (DN250 diameter), the service life of a single unit exceeded 130 days (a 60% reduction in replacement frequency) thanks to a wear-resistant inner layer and a spiral design that prevents flattening. The flexible construction accommodates platform movement, eliminating the risk of pipeline rupture. The hoses are resistant to marine salt spray and UV radiation; combined with API-standard quick-connect couplings, this enabled a 38% reduction in maintenance downtime and significantly lowered the project's overall operating costs.

Applications

1. Primary drilling fluid circulation systems at oilfields

2. High-pressure discharge lines from mud pumps

3. Auxiliary lines for cementing and hydraulic fracturing (fracking) operations

4. Drilling fluid recovery systems for offshore drilling platforms

5. Transport of solid-liquid mixtures with high sand and drill cuttings content

6. Auxiliary equipment for drilling fluid processing units

Key Product Advantages

1. Impact-resistant and burst-proof design: a composite structural framework absorbs sudden pressure surges, eliminating the risk of rupture.

2. High wear resistance and durability: the specially designed inner channel withstands abrasive sand-laden flow, significantly extending service life.

3. Stable transport in large-diameter applications: large-diameter models ensure minimal deformation and high flow capacity, guaranteeing consistent pumping efficiency.

4. Versatility: suitable for use with water-based and oil-based fluids, as well as high-density mixed fluids.

5. Modularity and ease of installation: compatible with various standard connection types and allows for custom connection configurations.

6. Low maintenance costs: robust construction and a low failure rate reduce downtime and the need for equipment replacement.

Customization Services

1. Flange standards: API, ANSI, DIN, GB, and other international standards.

2. Custom finishing: color selection (black, red, yellow, etc.) and customer logo application.

3. Reinforcement design: steel wire spiral winding, steel wire braiding, or combined reinforcement options.

4. Temperature rating: choice of heat resistance class (120°C, 150°C, 180°C).

5. Functional features: anti-static design suitable for operation in hazardous areas (ATEX compliance).

Frequently Asked Questions

Q1: Is the JIDONGDA Large Diameter Oilfield Drilling Mud Hose compatible with both water-based and oil-based drilling fluids?

A1: Yes. The product is available with various inner tube options (natural rubber [NR] or modified nitrile rubber [NBR]) tailored for use with water-based or oil-based fluids. These materials effectively resist oil exposure and prevent hose swelling, eliminating the need for frequent hose replacements when switching fluid types and ensuring high versatility.

Q2: Does the product meet burst pressure safety standards for high-pressure drilling operations?

A2: Yes, it fully complies with all applicable standards. The burst pressure for standard products is 3.5 to 4 times the working pressure, exceeding API industry requirements. For deep-well drilling and ultra-high-pressure hydraulic fracturing (fracking) operations, reinforced designs are available to increase the safety factor and eliminate the risk of hose rupture caused by sudden pressure spikes.

Q3: Can an anti-static version be ordered for offshore drilling platforms requiring explosion-proof specifications?

A3: Yes, such an order is possible. The anti-static version utilizes conductive materials to create a continuous conductive path; this ensures the dissipation of static electricity generated by high-speed drilling fluid flow, guarantees full compliance with ATEX requirements for hazardous areas, and allows the hose to be used at both offshore and onshore sites where explosion protection is required.
