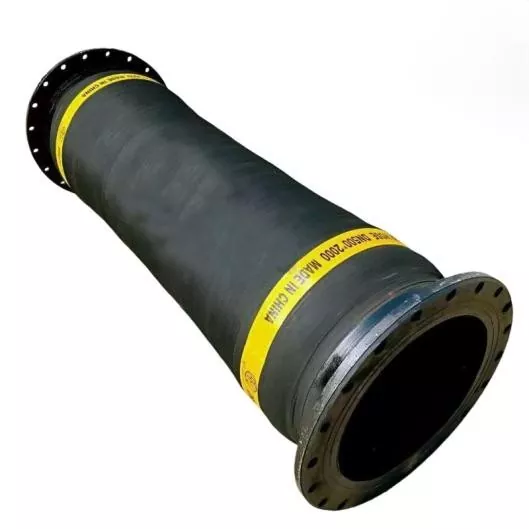

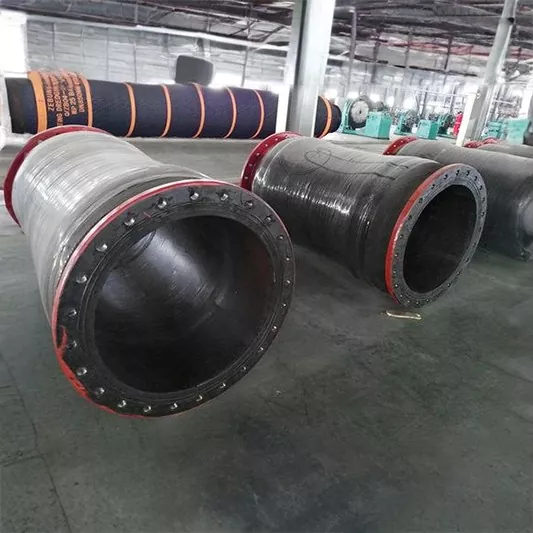

Large Diameter Dredger Slurry Hose

The JIDONGDA Large Diameter Dredger Slurry Hose is specifically designed for the dynamic operating conditions of dredgers; its construction is optimized for tensile strength, torsional stability, and resistance to abrasion from solid particles. Unlike traditional rigid pipes, which are prone to deformation and damage, this hose adapts to challenging conditions—including vessel movement, currents, and water level fluctuations—ensuring a reliable and efficient connection between floating and shore-based transport systems.

Construction and Materials:

1. Inner layer: Highly wear-resistant synthetic rubber compound designed for handling sand-gravel mixtures and slurry; significantly reduces erosive wear on the inner wall.

2. Reinforcement layer: Multi-layer high-strength cord combined with a steel wire helix; provides resistance to pressure and tension, preventing deformation.

3. Outer protective layer: Rubber resistant to seawater corrosion and UV exposure; suitable for long-term outdoor use in marine and river environments.

4. End fittings: Standardized steel flanges, quick-connect couplings, and swivel assemblies for float attachment; ensure ease of installation and high adaptability.

5. Optional configuration: Integrated float modules; enable the assembly of floating transport pipelines without the need for additional buoyancy equipment.

Quality and Engineering Validation Tests

1. High-velocity flow erosion test: simulates the transport of high-velocity slurry with high sand content; inner wall wear rate outperforms industry standards.

2. Dynamic tensile test: no structural cracks or permanent deformation under repeated tensile loading.

3. Cyclic pressure test: no leakage after ≥150,000 pressure fluctuation cycles.

4. Seawater immersion test: material properties remain stable, with no performance degradation after prolonged exposure to seawater.

5. Torsion test: simulates vessel movement; no delamination or separation of the rubber layer.

Main Applications

1. Pulp discharge systems on dredgers; seaport dredging and expansion projects.

2. Projects to clean rivers of silt and restore the aquatic ecosystem.

3. Marine hydraulic works and creation of artificial territories (land reclamation).

4. Transportation of sand and gravel mixtures over long distances; discharge of mine pulp and tailings.

5. Temporary discharge of pulp at construction sites; emergency pulp transportation.

Practical Application Example

Project Description: A 2024 project involving the expansion of Port Klang (Malaysia) and land reclamation. Site conditions were characterized by strong tidal currents and a high sand and gravel content in the dredged slurry, necessitating round-the-clock dredging operations. Standard hoses previously used required replacement every 2–3 months due to wear, twisting, and cracking, resulting in extremely high maintenance costs. Implementation Plan: The project team procured 120 units of JIDONGDA DN800 large-diameter dredging slurry hoses, selecting a reinforced version equipped with float modules to facilitate long-distance transport (3.2 km) via a floating pipeline.

Operational Results: The Large Diameter Dredger Slurry Hose operated continuously and reliably for 11 months; uniform wear was observed on the inner pipe walls, with no cracking, leakage, or delamination. This significantly reduced equipment replacement and operational expenses, lowering the total construction cost by more than 60%. The project team placed additional orders for the second phase of channel dredging, fully validating the product's reliability under demanding operating conditions.

Key Product Advantages

1. Specialized design for dredgers: Engineered to withstand frequent dredge relocation, equipment vibration, and challenging hydrodynamic conditions; offers significantly greater adaptability than general-purpose hoses.

2. Ultra-wear-resistant inner lining: An optimized rubber compound provides resistance to erosion caused by high-velocity flows of sand, gravel, and slurry, ensuring an extended service life.

3. High torsional and tensile strength: The hose body maintains structural stability during towing, floating deployment, and maneuvering, resisting deformation or delamination.

4. Versatile application: Suitable for both floating pipeline configurations and stationary onshore transport systems.

5. Long-distance transport capability: Allows for the connection of multiple sections to form extended lines, reducing the need for intermediate pumping equipment and enhancing operational efficiency.

6. Industrial-grade reliability: Designed for continuous 24/7 operation with a low failure rate and minimal maintenance requirements.

Frequently Asked Questions

Q1: Can the JIDONGDA Large Diameter Dredger Slurry Hose be used for both floating pipelines and stationary onshore slurry discharge?

A1: Yes. The product features a dual-purpose design (suitable for both land and water); with the installation of additional integrated float modules, it serves as a floating pipeline. When the buoyancy elements are removed, it can be laid directly on shore without structural modifications, ensuring high reusability and adaptability to various operating conditions.

Q2: What is the hose's service life in terms of pressure cycles, and is it suitable for prolonged continuous operation?

A2: All standard large-diameter JIDONGDA dredging slurry hoses undergo factory testing involving over 150,000 pressure cycles without showing signs of leakage or structural damage. For particularly demanding applications—such as mine tailings transport or marine dredging operations involving high solids content—we offer reinforced, modified versions capable of withstanding over 200,000 pressure cycles, making them fully suitable for long-term continuous use.

Q3: Is the hose's outer layer susceptible to aging or cracking after prolonged exposure to seawater and sunlight?

A3: No. The outer layer is made from a specialized weather-resistant composite rubber containing UV and salt-spray resistant additives; the material has successfully passed aging tests involving long-term immersion in seawater. It effectively withstands intense coastal sunlight and the corrosive effects of seawater—preventing surface hardening, cracking, or chalking—and is suitable for year-round marine operation.
