China Quick Coupling Supplier

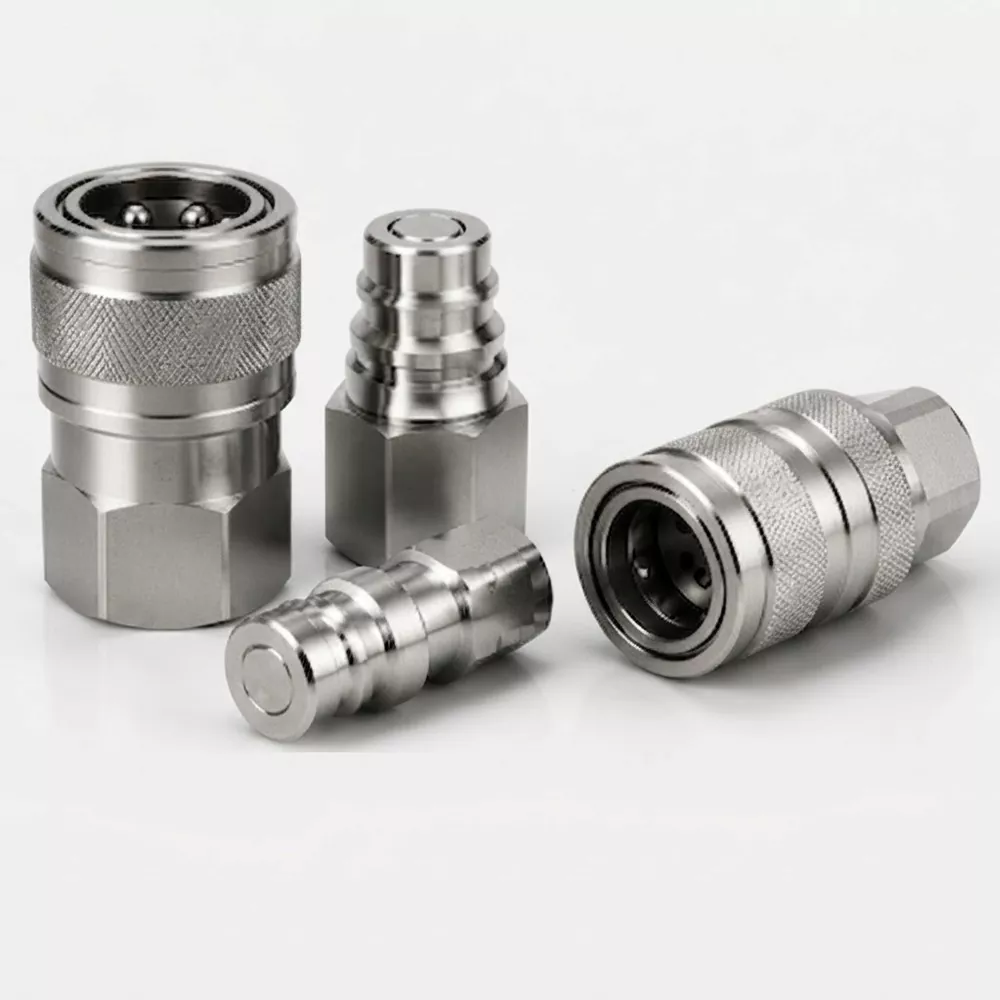

In fluid power systems, a Quick Coupling is a mechanical device that allows rapid and secure connection and disconnection of fluid lines without the need for tools or complicated procedures. These components are critical in hydraulic, pneumatic, and cooling applications where efficiency, safety, and minimal fluid loss are top priorities. At JIDONGDA, we have spent decades refining the design and manufacture of quick couplings to meet the demanding requirements of global industries. Our portfolio spans a wide array of configurations, materials, and pressure ratings, enabling seamless integration into agricultural machinery, construction equipment, industrial automation lines, and automotive service tools.

Common Applications and Industry Use

• Agriculture: Quick couplings on tractor hydraulic remotes allow fast implement changes. JIDONGDA’s ISO 5675 Pioneer-type couplings are widely used on loaders and balers, fitted with dust caps and high-flow poppets to reduce heat build-up.
• Construction and Earthmoving: Excavators, skid steers, and wheel loaders rely on flat-face quick couplings to power attachments like hammers and grapples. JIDONGDA JD-FF series withstands high impulse pressures and resists brinelling on the locking balls.
• Industrial Machinery: Presses, injection molding machines, and hydraulic power units use quick couplings for gauge connections, cylinder ports, and modular tooling. The compact JD-A-CS series is preferred for its push-to-connect sleeve design.
• Automotive Service: Air tools in workshops use lightweight brass quick couplings. JIDONGDA’s JD-PN series offers one-hand operation and high air flow for impact wrenches and spray guns.
• Rail and Marine: Stainless steel couplings with FKM seals are employed in braking systems and hatch hydraulics. These couplings undergo type approval testing according to DNV or ABS standards.

Quality Control and Testing Procedures at JIDONGDA

Every quick coupling batch produced by JIDONGDA undergoes comprehensive quality assurance. Raw materials are inspected with a spectrometer to verify chemical composition. After machining, critical dimensions are measured with CMM (coordinate measuring machines) and optical comparators. Functional testing includes the following steps:

• Proof pressure test at 1.5 times the rated working pressure for 3 minutes, with zero external leakage allowed.
• Burst pressure sampling test, where couplings must exceed 4 times the rated working pressure without fracture.
• Vacuum leakage test for pneumatic couplings, where pressure drop must be less than 0.01 bar over 30 seconds.
• Connection force and pull-off force measurement, ensuring consistent user effort and adherence to ISO limits.
• Salt spray test (ASTM B117) for plated components, targeting ≥720 hours to red rust.

JIDONGDA maintains an in-house test lab equipped with multi-station endurance rigs that cycle couplings continuously for months. This data drives improvements in surface finish and heat treatment, resulting in products that have been adopted by leading OEMs worldwide.

FAQ

What is the difference between ISO 7241-1 A and ISO 7241-1 B quick couplings?

The primary difference lies in the valve mechanism and dimensions. ISO 7241-1 A (also called “poppet” type) uses a poppet valve in both halves and is common in agricultural and general hydraulic applications. ISO 7241-1 B (often referred to as “ball” type) has a ball valve design and is interchangeable with Parker 60-series and similar industrial couplings. While both standards share the same outer diameter threads in many sizes, the internal sealing geometry is not interchangeable. Attempting to connect an A half with a B half will result in mismatched flow and potential leakage. JIDONGDA manufactures both families with distinct body markings to avoid confusion on site.

Can JIDONGDA quick couplings be used with water or aggressive chemicals?

Yes, but the material and seal selection must be appropriate. For water-based fluids, using carbon steel couplings risks corrosion, even with zinc plating. JIDONGDA recommends stainless steel (SS316) bodies combined with EPDM seals for deionized water or cooling circuits. For aggressive chemicals such as certain phosphate esters or brake fluids, FKM seals are advisable, and the wetted metal surface may require electroless nickel plating. Our engineering team can review the specific fluid compatibility chart and propose the optimal configuration. We also offer couplings with PTFE backup rings for extreme chemical resistance.

How do I prevent trapped pressure when disconnecting?

Trapped pressure can make reconnection difficult or dangerous. JIDONGDA addresses this in two ways. First, our standard flat-face couplings (JD-FF series) feature a connect-under-pressure design that allows the male tip to be pushed in even when the female body is pressurized, up to a certain limit (typically 40 bar for the male side). Second, we offer specialized screw-together couplings for high-pressure release. Alternatively, a pressure relief tool or a coupling with a built-in bleed valve can be used. Always follow safe hydraulic procedures and wear protective equipment when dealing with pressurized lines.

What maintenance is required for quick couplings to ensure long service life?

Regular maintenance is minimal but crucial. Inspect the coupling for external damage, corrosion, or wear on the locking balls and groove after every 500 hours of operation. Clean the mating surfaces and dust caps before connection to prevent contamination ingress. Lubricate the O-rings with compatible grease periodically if the coupling remains disconnected for long periods. In dirty environments, protective caps should be installed on both halves when not in use. JIDONGDA supplies replacement seal kits and dust caps, and we recommend replacing seals after approximately 100,000 cycles or whenever leakage is observed at standard pressure.

Does JIDONGDA offer non-standard thread configurations or custom quick couplings?

Absolutely. While we stock a wide range of standard threads (BSPP, NPT, SAE, metric), custom threads and body sizes are part of our daily business. We can machine special threads such as JIC 37° flare or face-seal O-ring boss, and we can alter the overall length or hex configuration. For large OEM clients, JIDONGDA can design a dedicated coupling assembly with specific flow characteristics, integrated check valves, or color-coded sleeves. Minimum order quantities apply, and our engineering team will work with you from prototype to full production, using 3D models and FEA analysis to validate the design before machining.

How do I identify the correct replacement quick coupling for my equipment?

Identification involves checking several parameters. First, measure the thread size and pitch with a thread gauge. Second, determine the profile of the mating nose – compare it with ISO standard silhouettes for A, B, flat-face, or Pioneer types. Third, note the locking method: ball-lock, pin-lock, or threaded collar. Finally, consider the application pressure and fluid. If you can provide the original part number or a photo with dimensions, JIDONGDA’s technical support team can cross-reference it to our series. We maintain a comprehensive interchange database covering popular brands, enabling quick and accurate replacement.
