How Can a Wire Reinforced Large Diameter Flanged Rubber Hose Improve Heavy-Duty Material Transfer Efficiency

JIDONGDA provides the Wire Reinforced Large Diameter Flanged Rubber Hose for demanding industrial suction and discharge applications where structural stability, reliable connections, and high-volume material transfer are essential. Designed for transporting water, slurry, mud, sand, and compatible mineral materials, this flexible hose combines a multi-layer rubber structure, spiral steel wire reinforcement, and customizable flange connections to address the practical challenges of mining, dredging, and industrial pumping systems.

A wire reinforced large diameter flanged rubber hose is designed to maintain its shape during suction operations while supporting the pressure requirements of discharge applications. Its spiral steel wire reinforcement helps resist inward deformation under negative pressure, while the rubber layers protect the hose and accommodate different transported media. Flanged ends simplify integration with pumps, dredging equipment, and fixed pipelines. This guide explains the hose structure, working principle, industrial applications, selection criteria, and maintenance practices to help engineering teams specify a suitable solution for their operating conditions.

Table of Contents

1. What Is a Wire Reinforced Large Diameter Flanged Rubber Hose?
2. How Does Its Reinforced Structure Work?
3. What Are the Main Performance Advantages?
4. Which Industries Benefit from This Hose?
5. How Does It Compare with Other Hose Types?
6. How Do You Choose the Right Hose?
7. What Installation and Maintenance Practices Matter?
8. Frequently Asked Questions
9. Conclusion and Product Inquiry

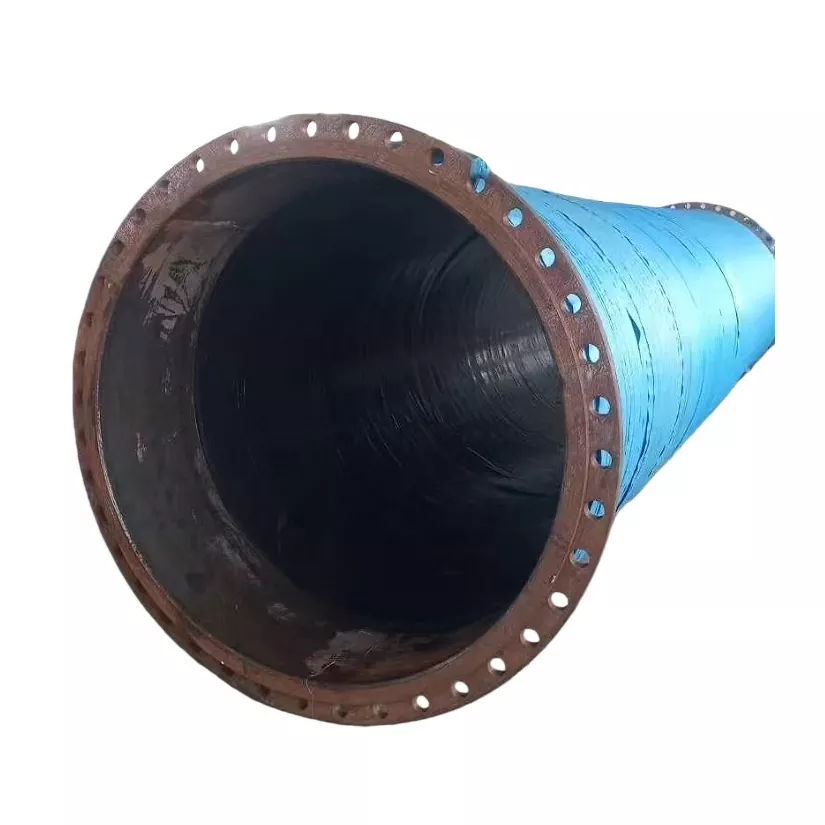

What Is a Wire Reinforced Large Diameter Flanged Rubber Hose?

A wire reinforced large diameter flanged rubber hose is a flexible pipeline component engineered for moving substantial volumes of liquids and compatible solid-liquid mixtures. It is particularly useful when conventional rigid pipes are difficult to install, equipment requires flexible connections, or the pipeline must operate under both suction and discharge conditions.

The defining feature is the spiral steel wire embedded within the hose wall. Unlike a rubber hose that relies only on its elastomeric body and textile reinforcement, this construction adds circumferential support to help the hose resist external pressure during vacuum operation.

JIDONGDA develops this hose for applications involving:

• Water transfer and industrial fluid handling.
• Slurry, mud, sand, and mineral material transportation.
• Dredging and sediment removal systems.
• Mining and aggregate processing operations.
• Flexible connections between pumps, equipment, and pipelines.

For buyers evaluating different configurations, the JIDONGDA wire reinforced hose product page provides a starting point for reviewing the product structure and customization options.

How Does Its Reinforced Structure Work?

The performance of a large-diameter industrial hose depends on the coordinated function of its rubber compounds, reinforcement layers, steel wire structure, and end connections. Each component addresses a different operating requirement.

1. Inner Rubber Layer

The inner tube contacts the transported material directly. Its compound should be selected according to the medium's chemical properties, particle characteristics, and operating temperature. For abrasive slurry or sand, an appropriately formulated wear-resistant rubber compound can help reduce internal erosion and premature failure.

2. High-Strength Reinforcement Layers

Fabric or other specified reinforcement layers provide additional structural strength and help the hose withstand internal pressure during discharge. Their arrangement and specifications should correspond to the intended working pressure and service conditions.

3. Spiral Steel Wire Reinforcement

The embedded steel wire forms a supporting framework around the hose circumference. During suction, external atmospheric pressure can push an inadequately supported hose inward. The spiral reinforcement helps preserve the internal flow passage and reduce the risk of flattening or collapse.

4. Protective Outer Rubber Cover

The outer layer helps protect the hose against external abrasion, impact, weather exposure, and mechanical damage. The appropriate cover compound depends on the installation environment and anticipated exposure.

5. Flanged End Connections

Flanged ends allow the hose to connect with compatible pumps, dredging equipment, and fixed pipeline sections. JIDONGDA can configure flange dimensions and connection arrangements according to applicable standards or customer drawings, subject to technical confirmation.

What Are the Main Performance Advantages?

Improved Stability Under Negative Pressure

Vacuum resistance is a key reason to specify a wire reinforced large diameter flanged rubber hose. Spiral steel wire helps maintain the hose cross-section during suction, supporting more stable material flow. Actual vacuum performance depends on wire spacing, hose diameter, reinforcement design, length, bending conditions, and operating pressure.

Support for Suction and Discharge Operations

Many industrial transfer systems require a hose to handle negative pressure during suction and positive pressure during discharge. A properly specified construction addresses both conditions through its combined reinforcement system. Buyers should verify the rated limits for each operating mode rather than assume that suitability for one guarantees suitability for the other.

High-Volume Material Transfer

A large internal diameter can accommodate substantial flow rates when the hose is correctly sized for the pump and system. Appropriate diameter selection helps balance flow requirements, velocity, pressure loss, and the characteristics of the transported material.

Flexible Equipment Integration

Rubber construction accommodates movement and helps connect equipment that may not align perfectly with a rigid pipeline. Flanged connections also provide a practical interface for installation, inspection, and replacement when designed for the mating equipment.

Project-Specific Configuration

Hose diameter, length, rubber compound, reinforcement structure, and flange configuration can be considered together. This allows the hose assembly to reflect the actual operating conditions instead of relying on a generic specification.

Which Industries Benefit from This Hose?

Mining and Mineral Processing

Mining operations frequently move abrasive slurry, tailings, and mineral-bearing mixtures between processing equipment and designated storage areas. A suitable hose combines a compatible inner rubber compound with reinforcement designed for the expected pressure and vacuum conditions.

Dredging and Sediment Removal

Dredging systems transport sand, silt, mud, and sediment through suction and discharge pipelines. Flexible flanged hoses can connect pumps and dredging equipment while accommodating installation movement. The hose must be selected for the actual solids concentration, particle size, flow conditions, and marine or freshwater environment.

Sand and Gravel Handling

Aggregate extraction and processing may require the transfer of water mixed with sand or gravel. Abrasion resistance and suitable flow velocity are particularly important because coarse particles can accelerate wear at the hose lining, bends, and connection areas.

Industrial Pumping Systems

Large pumps may require flexible suction and discharge connections to accommodate equipment movement, simplify installation, or isolate some vibration. The hose's pressure and vacuum ratings must match the pump's operating envelope, including startup and shutdown conditions.

Ports and Marine Engineering

Port operations and marine projects may use large-bore hoses for material transfer and pipeline connections. For these environments, buyers should also evaluate external exposure, flange corrosion protection, handling loads, and any project-specific marine requirements.

How Does It Compare with Other Hose Types?

Different hose constructions serve different purposes. The best choice depends on the direction of flow, pressure conditions, transported medium, and required connection arrangement.

The comparison is general rather than a substitute for model-specific data. Construction details vary among manufacturers, and no hose type should be assumed to outperform another under every condition.

For related requirements, explore JIDONGDA's large diameter dredging flanged rubber hose and large diameter suction and discharge rubber hose categories where available.

How Do You Choose the Right Hose?

Before purchasing a wire reinforced large diameter flanged rubber hose, engineering and procurement teams should define the actual duty rather than select a product by nominal diameter alone.

1. Identify the Transported Medium

Specify whether the hose will carry clean water, wastewater, mud, sand, mineral slurry, or another material. Include chemical composition, particle size, solids concentration, and temperature. These details guide the choice of inner rubber compound and abrasion protection.

2. Confirm Diameter and Flow Requirements

Determine the required internal diameter from the target flow rate, allowable pressure loss, pump characteristics, and material transport requirements. An oversized or undersized hose can create system inefficiencies or operational problems.

3. Establish Pressure and Vacuum Limits

Provide the normal working pressure, maximum anticipated pressure, suction vacuum, and any transient conditions. Request documented ratings for the proposed configuration. The working pressure and vacuum rating should not be inferred from appearance or wire reinforcement alone.

4. Specify Length and Routing

Measure the required installed length and identify bends, movement, and connection positions. Respect the manufacturer's minimum bend radius and avoid routing that causes kinking, twisting, excessive tension, or concentrated loads at the flanges.

5. Match the Flange Standard

Confirm the applicable flange standard, nominal size, pressure class, bolt-hole pattern, facing, material, and sealing arrangement. Potential standards include GB, DIN, ANSI, JIS, and ASME, but compatibility must be checked against the exact mating equipment and project requirements.

6. Evaluate Service Conditions

Consider outdoor exposure, moisture, abrasion, impact, corrosion, operating cycles, and expected maintenance access. A technically compatible hose with unsuitable external protection or an incorrect connection arrangement may still have a short service life.

For a quotation, prepare the following information:

• Required hose internal diameter and overall length.
• Transported medium and operating temperature.
• Working pressure, maximum pressure, and suction vacuum.
• Flange standards, dimensions, and mating equipment details.
• Installation layout, bend requirements, and environmental exposure.
• Quantity, delivery requirements, and applicable inspection documents.

What Installation and Maintenance Practices Matter?

Correct installation is essential to achieving the intended performance of a reinforced hose assembly. Even a well-designed product can fail prematurely when it is twisted, over-bent, poorly supported, or operated outside its rated limits.

Installation Recommendations

• Inspect the hose body, flange faces, and sealing surfaces before installation.
• Align mating flanges without forcing the hose into position.
• Use compatible gaskets and fasteners, tightening bolts according to the applicable procedure.
• Prevent torsion, excessive tensile loads, and bends tighter than the specified minimum radius.
• Provide suitable support where the hose assembly's weight or external loads could strain the connections.
• Verify system pressure and vacuum limits before commissioning.

Routine Inspection

• Check for cracks, bulges, exposed reinforcement, cuts, and unusual deformation.
• Inspect flange connections for leakage, corrosion, loosened fasteners, and damaged seals.
• Monitor for unexpected pressure loss, reduced flow, or signs of suction collapse.
• Review abrasion in areas exposed to coarse particles or repeated contact.
• Remove damaged assemblies from service and follow the manufacturer's inspection and replacement guidance.

Inspection intervals should reflect operating severity, system criticality, and applicable site procedures. A fixed service life cannot be guaranteed without considering the actual duty and maintenance history.

Frequently Asked Questions

1. What is the main purpose of spiral steel wire reinforcement?

Its primary purpose is to provide circumferential support that helps the hose resist inward deformation under negative pressure. This is especially important in large-diameter suction systems where hose collapse can restrict flow.

2. Can this hose handle both suction and discharge?

It can be designed for both duties, but the allowable pressure and vacuum must be confirmed for the specific hose construction. Buyers should request the applicable ratings rather than assume every model has the same performance limits.

3. Which materials can a wire reinforced large diameter flanged rubber hose transport?

Depending on its rubber compound and engineering specification, it can be used for water, mud, slurry, sand, and compatible mineral materials. Chemical compatibility, particle abrasiveness, temperature, and solids concentration should be evaluated before selection.

4. Are the flange dimensions customizable?

JIDONGDA indicates that flange configurations can be customized according to recognized standards or customer drawings. Provide the exact dimensions, flange standard, pressure class, and mating connection details for technical confirmation.

5. How can I reduce premature hose wear?

Select an appropriate inner rubber compound, avoid excessive flow restrictions, follow the specified bend radius, and inspect high-wear areas regularly. Operating pressure, transported particle characteristics, and installation conditions should also remain within the approved limits.

6. What information is needed to request a quotation?

Provide the hose diameter, length, medium, working pressure, vacuum requirements, temperature, flange configuration, operating environment, and order quantity. Drawings or photographs of the existing connections can help clarify interface requirements.

7. How do I know whether a hose is suitable for my project?

Compare the proposed hose specifications with the project's operating conditions and connection requirements. Confirm pressure and vacuum ratings, material compatibility, dimensions, and inspection documentation with the manufacturer before placing an order.

Conclusion: Specify a Hose That Matches Your Operating Conditions

A wire reinforced large diameter flanged rubber hose can provide an effective solution for demanding suction and discharge systems by combining flexible rubber construction, structural reinforcement, spiral steel wire support, and adaptable flange connections. Its suitability depends on matching the design to the transported medium, required flow, pressure and vacuum conditions, installation geometry, and maintenance plan.

JIDONGDA offers customization options for hose dimensions, reinforcement structures, material selection, and flange configurations to support different industrial transfer requirements. To discuss your application, review the Wire Reinforced Large Diameter Flanged Rubber Hose product details and prepare your technical specifications. Contact us today to discuss your project requirements, request a tailored quotation, and identify a suitable hose configuration for your pipeline system.
