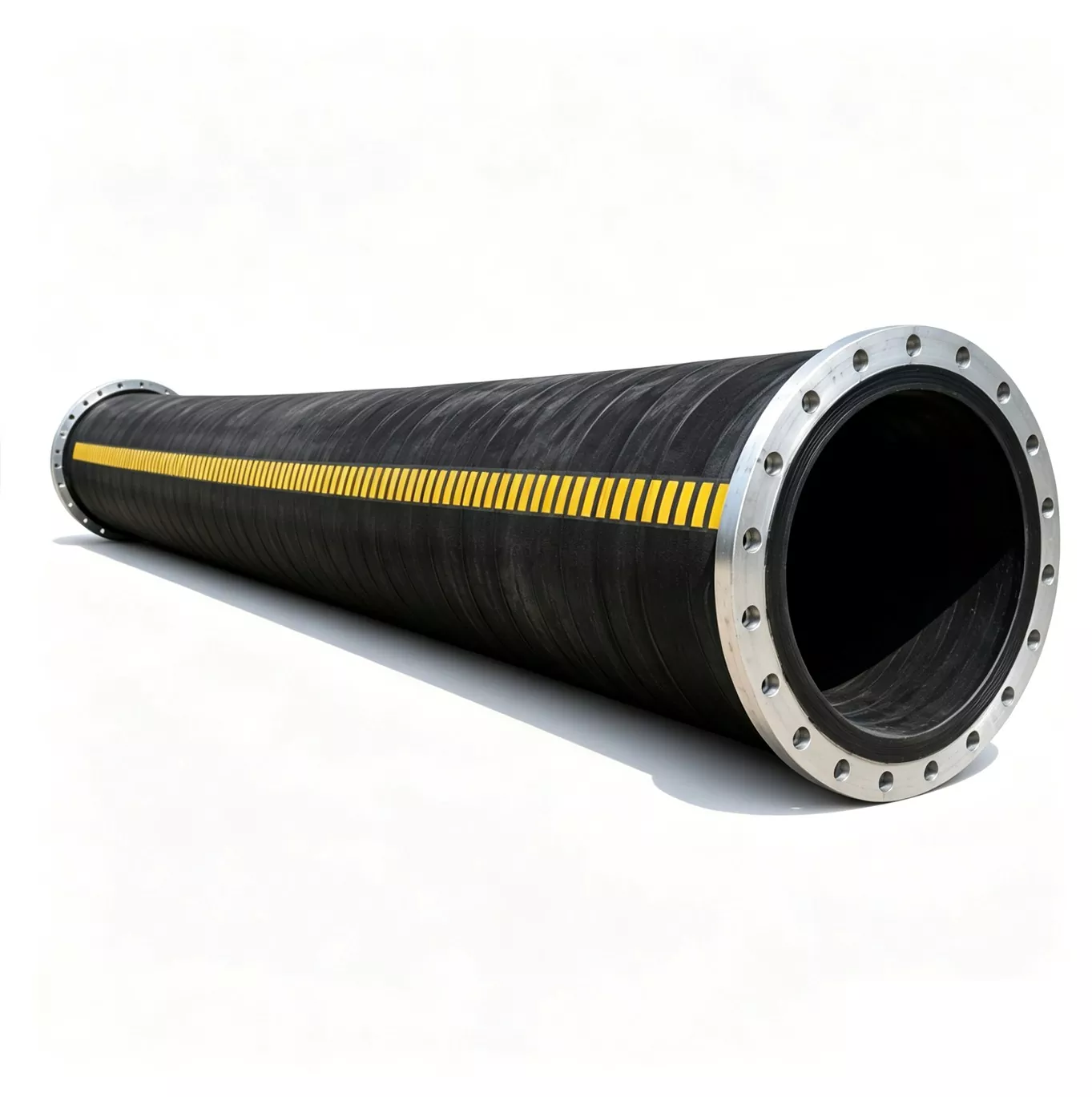

China Large Diameter Dredging Hose Supplier

In the world of marine construction, port maintenance, and land reclamation, the backbone of efficient sediment transport lies in a single critical component: the Large Diameter Dredging Hose. Engineered to withstand the harshest abrasive slurries, extreme bending forces, and relentless pumping pressures, a correctly specified hose can make the difference between a profitable dredging project and a costly operational failure. As projects push into deeper waters and higher production targets, contractors demand hoses that combine massive inner diameter capabilities with unmatched durability. Understanding the engineering, material science, and performance parameters behind these hoses is essential for any procurement manager or project engineer aiming to secure seamless material flow.

JIDONGDA stands at the forefront of this specialized industry. With decades of manufacturing refinement and a global network of successful installations, JIDONGDA has earned its reputation as a premier supplier of large diameter dredging hoses. The company’s in-house R&D continuously tests rubber compounds, reinforcement layers, and end-fitting designs to produce products that exceed conventional standards. Every hose leaving the factory undergoes rigorous hydrostatic testing and visual inspection, ensuring that it can handle the dynamic loads found on cutter suction dredgers, trailing suction hopper dredgers, and booster stations. JIDONGDA’s product line includes floating dredge hoses, armored hoses, and custom-engineered solutions for the most challenging coastal and inland waterway projects.

Frequently Asked Questions

What is the maximum particle size a large diameter dredging hose can transport?

The ability to transport coarse material depends on the inner diameter and the liner’s resistance to gouging. For JIDONGDA hoses, a rule of thumb is that particle sizes up to one-third of the hose ID can be safely handled if the material is rounded gravel. For sharp, angular rocks, the recommended maximum particle size is approximately 20% of the ID. For example, a 600 mm hose can consistently pass 120-200 mm particles without excessive liner wear. However, for continuous transport of cobbles larger than 150 mm, a site-specific abrasion assessment should be conducted. The proprietary JIDONGDA liner compound with its high tear strength and resilience is designed to withstand repeated impacts from large, heavy particles that would quickly destroy standard rubber linings.

How do I determine the correct working pressure rating for my dredging project?

Selecting the working pressure begins with understanding your pump characteristic curve and the total dynamic head of the pipeline system. Sum the static lift from the dredge depth to the discharge point, add friction losses across the entire pipeline length (including shore lines and floating sections), and then add velocity head and any additional pressure required at the discharge nozzle. The maximum operating pressure at the pump outlet should then be multiplied by a safety factor of at least 1.25 to account for transient pressure spikes. JIDONGDA recommends selecting a hose whose rated working pressure exceeds this calculated maximum value. If a booster pump is used midway, the hose sections downstream of the booster will require a higher rating. Consulting with JIDONGDA’s application engineers during the design phase can help optimize the selection and avoid costly over-specification.

What distinguishes a floating dredge hose from a submarine hose?

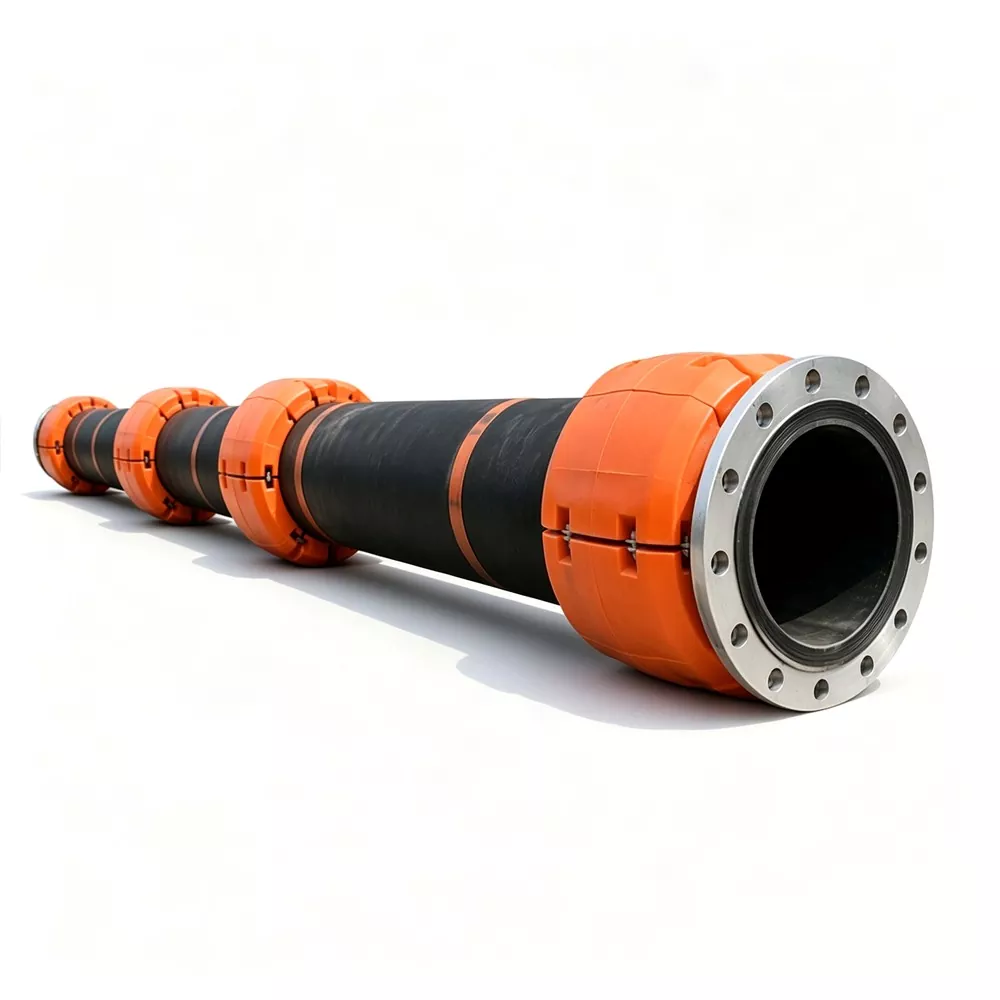

Floating dredge hoses include an integral foam flotation layer bonded to the hose carcass, enabling them to remain on the water surface. They feature additional outer covers resistant to sunlight, ozone, and occasional contact with hydrocarbons. Submarine hoses, on the other hand, are designed to lie on the seabed and do not include flotation; they are often heavier per meter and may incorporate an external armoring layer to resist abrasion from rocks and coral. Both types share the same core construction of liner, reinforcement, and cover. JIDONGDA manufactures both variants and can advise on the best configuration based on water depth, wave action, and seabed conditions. For projects requiring a mix of floating and submerged sections, JIDONGDA can supply matching assemblies with unified flange standards.

How often should large diameter dredging hoses be inspected and maintained?

A thorough inspection schedule includes daily visual checks for cuts, abrasions, or bulges on the outer cover, weekly bolt torque checks on flange connections, and monthly thickness measurements of the liner at predetermined wear points. Most operators use ultrasonic thickness gauges to monitor the remaining liner material without disassembling the hose. When the liner thickness reaches approximately 30% of the original value, the hose should be scheduled for replacement or relining. JIDONGDA provides detailed maintenance manuals and offers on-site training for inspection crews. Flange gaskets should be replaced whenever a hose is disconnected, and spare gaskets are supplied in the initial kit. Proper storage, away from direct sunlight and sources of ozone, also extends the service life of spare hoses.

Can JIDONGDA provide custom end fittings for non-standard pipe connections?

Absolutely. While ANSI and DIN flanges are standard, many dredgers and pipelines use proprietary or regional connection systems. JIDONGDA’s engineering department can design and fabricate custom weld-on flanges, quick-connect couplers, or ball-and-socket joints to match the customer’s existing equipment. The steel used for these fittings is certified to applicable marine grades, and full penetration welding is performed by certified welders. Non-destructive testing (ultrasonic or X-ray) verifies the weld integrity before the fitting is bonded into the hose body. Lead times for custom end fittings are typically two to three weeks, depending on complexity.

What makes JIDONGDA’s large diameter dredging hoses more durable in abrasive environments?

Durability stems from three pillars: material science, reinforcement design, and process control. The liner uses a high proportion of natural rubber for its exceptional resilience and cut-growth resistance, enhanced with abrasion-resistant fillers and a curing system that optimizes crosslink density. The reinforcement layers are precisely angled to balance hoop strength and longitudinal flexibility, preventing premature fatigue. During production, each layer is applied under controlled tension, and the entire assembly is cured in an autoclave with uniform temperature and pressure. This yields a monolithic structure with no air pockets or delaminations. Independent tests show JIDONGDA liners outlast generic rubber compounds by 30% to 50% in side-by-side slurry loop tests, directly translating to lower cost per cubic meter of dredged material.
