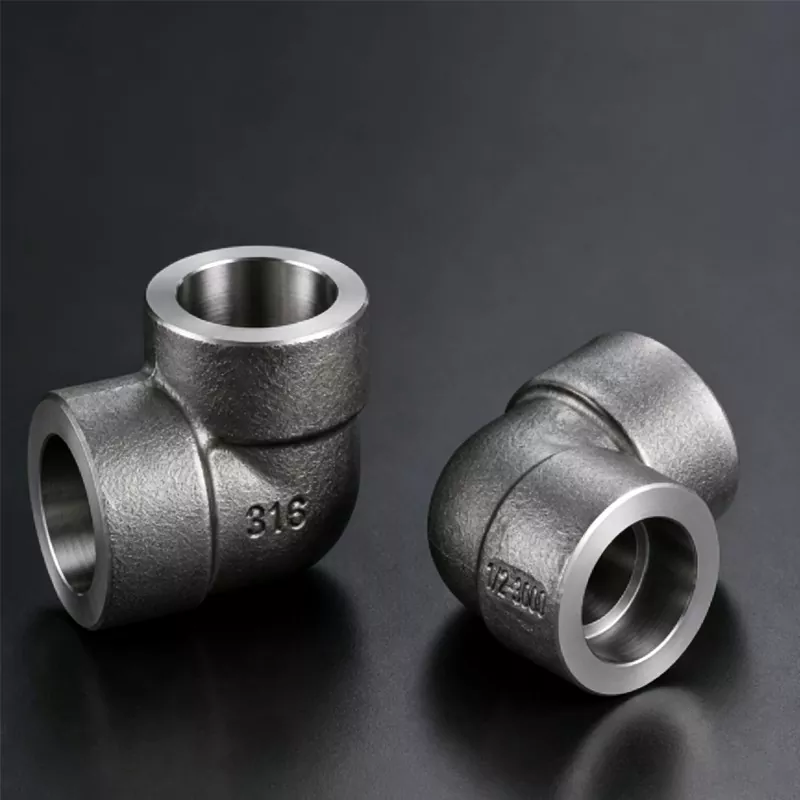

90° Socket Weld Elbow

In modern industrial piping layouts, flow direction changes are not just geometric requirements—they are critical stress points that directly influence system stability, pressure efficiency, and long-term safety performance. 90° Socket Weld Elbow is engineered as a compact welded directional fitting designed to redirect flow at a right angle while maintaining full structural continuity and high-pressure sealing integrity. By combining socket welding technology with precision-machined internal geometry, it ensures a stable flow transition with minimal turbulence and maximum mechanical reliability.

The 90° Socket Weld Elbow is a forged or machined pipe fitting designed for permanent installation in small-bore, high-pressure pipeline systems.

It works by inserting the pipe into a socket cavity and applying a circumferential fillet weld, forming a strong metallurgical bond.

This structure eliminates leakage risks associated with threaded fittings and ensures long-term stability in demanding industrial environments.

Key engineering purpose:

• change flow direction by 90 degrees

• maintain pressure stability

• reduce system stress concentration

• ensure compact installation in limited space

Technical Specification Table

Application Fields

90° Socket Weld Elbows are widely used in high-reliability industrial systems, including:

• Oil & Gas Instrumentation Piping

• Chemical Processing Systems

• Power Plant Auxiliary Pipelines

• Refinery High-Pressure Lines

• Marine Engineering Systems

• Hydraulic Control Circuits

• Gas Distribution Networks

• Industrial Equipment Piping Assemblies

Why Global Buyers Choose Us

Global buyers choose us because we combine advanced precision forging and machining capabilities with strict dimensional tolerance control to ensure consistent product quality across every batch. Each product undergoes a complete quality assurance process, including full pressure testing and weld inspection systems, to guarantee stable performance under real industrial operating conditions. We also provide flexible OEM and custom size solutions to meet diverse engineering requirements across different projects and industries. With fast production capacity and reliable global shipping support, we are able to respond efficiently to urgent project demands. Our products have been widely proven in industrial applications worldwide, delivering long-term reliability, safety, and performance stability in demanding environments.
