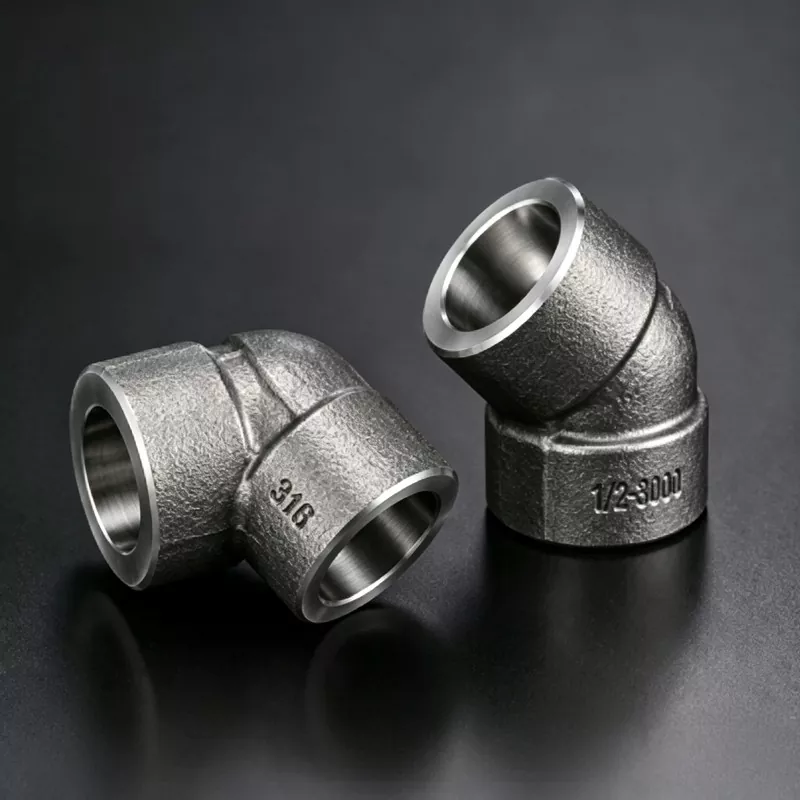

45° Socket Weld Elbow

In industrial piping design, not every directional change requires a sharp turn. In many high-performance systems, engineers deliberately choose a 45-degree transition instead of a 90-degree elbow because it offers a more balanced combination of flow efficiency, pressure stability, and structural durability.

The 45° Socket Weld Elbow is designed for this exact engineering requirement. It provides a smooth directional change while maintaining the strength of a fully welded connection system, making it highly suitable for small-bore pipelines where flow behavior and mechanical reliability must be carefully controlled.

Engineering Function & Product Definition

The 45° Socket Weld Elbow is a forged, permanent pipe fitting used in high-pressure small-bore piping systems. It connects pipes through a socket insertion structure followed by circumferential fillet welding, forming a rigid and leak-resistant joint that becomes an integral part of the pipeline system.

Its core engineering purpose is not only to change flow direction, but to do so in a way that minimizes hydraulic disturbance. By introducing a medium-angle transition, it reduces sudden directional impact, improves flow continuity, and helps maintain more stable internal pressure conditions. This makes it particularly valuable in instrumentation lines, process piping systems, and precision-controlled industrial networks.

Technical Specification Table

Quality Assurance & Performance Validation

To ensure reliability in real operating environments, each 45° Socket Weld Elbow is manufactured under strict engineering control and verified through multi-layer testing processes. Pressure resistance is validated through hydrostatic testing under loads significantly higher than normal working conditions to confirm sealing stability and structural safety.

Weld integrity is inspected using non-destructive testing methods such as ultrasonic and radiographic evaluation, ensuring full fusion and eliminating internal defects that could affect long-term performance. In addition, fatigue simulation tests are conducted to replicate long-term vibration and cyclic pressure conditions, verifying that the component maintains structural stability throughout its service life. Dimensional accuracy is also strictly controlled to ensure precise socket alignment during field installation, reducing welding errors and assembly risks.

Application Engineering & System Use Cases

45° Socket Weld Elbows are widely used in industrial systems where controlled flow behavior and long-term sealing reliability are essential. In oil and gas instrumentation pipelines, they help maintain stable flow conditions while reducing pressure shock caused by directional changes. In chemical processing systems, they are used in dosing and transfer lines where flow consistency directly affects process accuracy.

They are also commonly applied in power plant auxiliary pipelines, refinery process systems, marine engineering installations, and gas distribution networks. In hydraulic control systems and industrial machinery piping assemblies, the 45° configuration provides an effective balance between compact layout design and hydraulic performance stability, especially in environments with vibration or continuous operation.

Key Engineering Advantages

From an engineering perspective, the 45° Socket Weld Elbow is not just a directional fitting but a flow optimization component within the pipeline system. Its geometry helps reduce turbulence compared to sharp-angle transitions, improving overall hydraulic efficiency. The fully welded structure eliminates the risk of mechanical loosening, ensuring long-term sealing reliability even under vibration and pressure cycling conditions.

Its compact design allows flexible installation in space-constrained piping layouts, while the forged body construction provides strong resistance to fatigue and deformation. This combination of flow stability and structural strength makes it a reliable solution for medium-pressure and high-precision industrial systems.

Engineering Summary

When designing high-performance piping systems, flow direction is not just a layout decision—it is a performance factor that directly affects efficiency, stability, and system lifespan. The 45° Socket Weld Elbow provides a scientifically balanced solution that improves flow behavior while maintaining the structural reliability of welded piping systems, making it a preferred choice for modern industrial engineering applications.
