Stainless Steel Braided Hose

The JIDONGDA Stainless Steel Braided Hose is a high-performance flexible piping assembly consisting of a corrugated stainless steel core and an external reinforcing braid. The internal corrugated structure provides flexibility, allowing for displacement and bending at various angles, while the outer braid restricts radial expansion and significantly enhances resistance to pressure and tension, striking an ideal balance between flexibility and structural integrity. As a critical safety component in industrial piping, this product prevents issues common to rigid piping (such as cracking, leakage, and fatigue failure), thereby ensuring long-term, stable system operation under demanding conditions.

Key Design Features

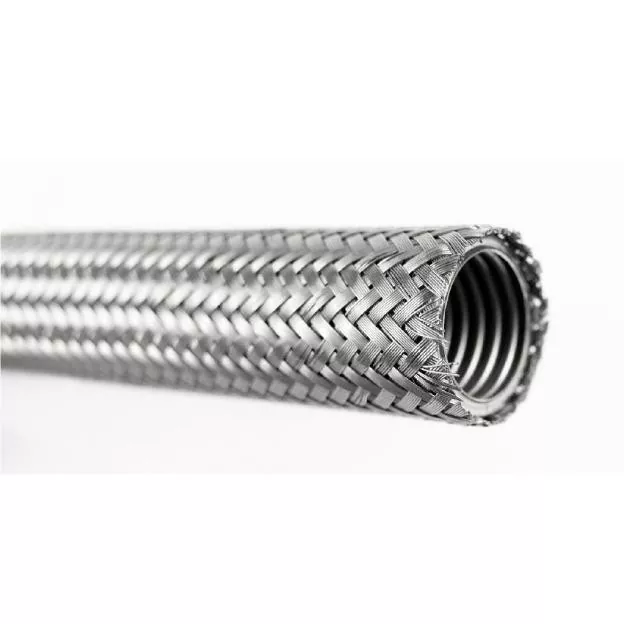

1. Corrugated Metal Hose

The hose is manufactured using precision forming from 304 or 316L grade stainless steel and features a uniform corrugated structure with excellent elastic deformation characteristics. It is suitable for routing complex piping in confined spaces and is compatible with a wide range of operating media.

2. Double-Layer Metal Braid

The hose body is protected by a dense stainless steel braid (high-density multi-layer braiding options are available). This design evenly distributes pressure and tensile loads, ensuring high resistance to impact and rupture.

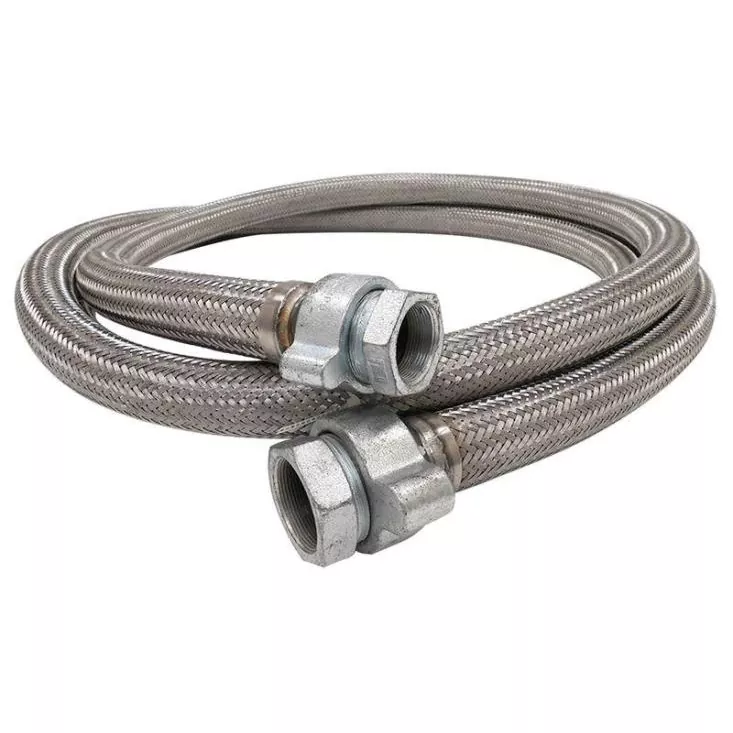

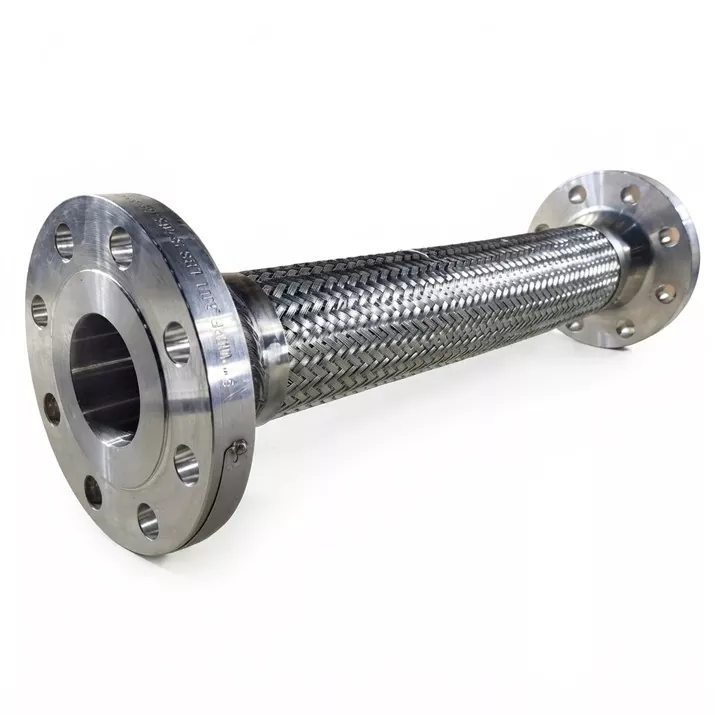

3. End Connections

Standard connection options include welding, flanges, and threaded fittings, ensuring compatibility with common industrial piping systems, ease of installation, and high versatility in application.

4. Protective coating

Anti-corrosion coatings are available that are adapted for harsh operating conditions (e.g., marine environments, highly aggressive environments, salt spray exposure), thereby extending the product's service life.

Main Areas of Application

Suitable for use across various industries; key applications include: high-pressure, high-temperature fluid transport piping; power boilers and heat exchange equipment; piping for corrosive media in chemical processing plants; vibration isolation and displacement compensation systems in shipbuilding; circulation systems for high-temperature metallurgical equipment; and thermal expansion and contraction compensation in HVAC systems.

Key Product Features

1. Braided reinforcement structure providing superior pressure and tensile resistance, effectively preventing pipeline bulging or rupture.

2. Exceptional flexibility, enabling use in complex piping configurations and accommodating multi-plane displacements and bending.

3. Resistance to extreme temperatures (both high and low) and high pressure; maintains stable performance under harsh operating conditions.

4. Vibration and fatigue resistance, significantly reducing the likelihood of pipeline failure and extending system service life.

5. High environmental adaptability; suitable for operation in industrial and marine environments, as well as highly corrosive settings.

6. Reliable sealing design, effectively minimizing the risk of media leakage and enhancing pipeline safety.

Customization Options

Adaptability to specific operating conditions: use of 316L stainless steel; high-density double- or multi-layer braiding; antistatic or conductive configurations; external thermal insulation jacket; various connection types; marine-grade anti-corrosion coating; versions for ultra-high temperatures (exceeding 600°C); and designs reinforced for vacuum service.

Key Product Advantages

1. Composite design combining the flexibility of a corrugated element with the strength of braided reinforcement, ensuring a balance between flexibility and structural reliability.

2. High resistance to pressure and fatigue loads, ensuring long-term, continuous, and stable operation.

3. Suitability for a wide range of extreme temperatures and excellent compatibility with diverse operating environments.

4. Industrial-grade quality and minimal maintenance requirements, resulting in low operating costs.

5. Compliance with recognized industry standards, making the product suitable for most engineering projects worldwide.

Examples of practical application in engineering projects

Example 1: Retrofitting a high-temperature pipeline at a coastal oil refinery

A coastal oil refinery faced frequent leaks and cracking in its high-temperature oil and gas pipelines, caused by thermal expansion/contraction and corrosion from sulfur-containing media. The project utilized JIDONGDA double-layer metal hoses made of 316L stainless steel, featuring tight braiding and a marine-grade anti-corrosion coating. Over 24 months of operation, the equipment reliably compensated for axial displacements of ±50 mm without any leaks, while maintenance frequency was reduced by 80%.

Example 2: Vibration damping in an offshore platform cooling pipeline system

A seawater cooling pipeline on an offshore platform in Southeast Asia required high resistance to equipment vibration, tidal displacement, and seawater corrosion. The project employed a custom-made JIDONGDA vacuum-reinforced stainless steel braided hose with a salt-spray resistant protective coating. After three years of continuous operation, the unit shows no signs of rust or deformation, fully meeting requirements for vibration damping and flexible pipeline displacement compensation.

Frequently Asked Questions

Question 1: What is the operating temperature range for the JIDONGDA Stainless Steel Braided Hose?

Answer 1: The standard 304 stainless steel model operates within the range of -200°C to 450°C; Ultra-high-temperature versions withstand conditions exceeding 600°C, while vacuum-reinforced models are suitable for transporting low-temperature media. Before leaving the factory, all products undergo high-temperature and high-pressure cycling tests.

Question 2: How do I choose between 304 and 316L stainless steel?

Answer 2: 304 stainless steel offers an optimal balance of cost and performance and is suitable for standard, non-aggressive media such as fresh water, steam, and air. 316L stainless steel offers superior corrosion and oxidation resistance, making it the preferred choice for aggressive environments involving chemical acids or alkalis, or exposure to marine salt spray.

Question 3: Is it possible to order products with non-standard dimensions and connection types?

Answer 3: Yes. JIDONGDA offers customized solutions tailored to specific operating conditions—including hose length and diameter, number of braid layers, and connection type (flanged, threaded, welded, etc.)—ensuring exact compliance with customer requirements.
