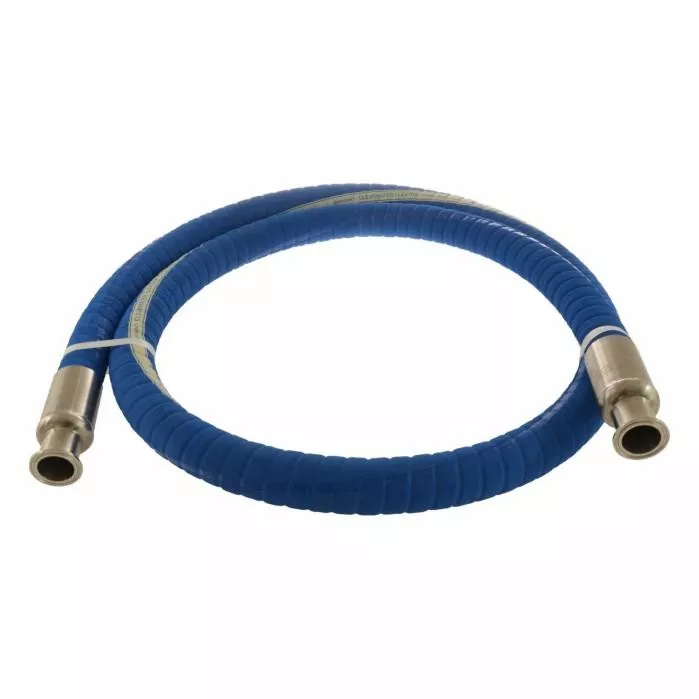

Heavy Duty Suction and Discharge Hose

The JIDONGDA Heavy Duty Suction and Discharge Hose is designed for high-intensity industrial transport systems, ensuring stable and continuous operation in both suction (negative pressure) and discharge (positive pressure) modes. Its composite reinforced structure effectively addresses common hose issues—such as suction collapse, rapid wear, insufficient pressure resistance, and premature aging—and enables handling of challenging media, including slurry, seawater, wastewater, and fluids containing solid particles. The product is widely used in large-scale engineering projects requiring prolonged, continuous operation.

Product Construction

1. Wear-resistant inner layer

Made of high-strength rubber suitable for transporting water, mud, mineral slurry, and fluids containing fine particles; a version with an enhanced polyurethane (PU) lining is also available.

2. Spiral steel reinforcement

An embedded high-strength steel helix provides reliable vacuum resistance, preventing hose deformation or collapse during suction operations.

3. Multi-layer reinforcement

Multiple layers of high-strength textile fabric significantly enhance tensile strength and high-pressure resistance, making the hose suitable for medium- and high-pressure applications.

4. Weather-resistant outer layer

Specialized weather-resistant rubber provides UV protection and resistance to abrasion and environmental aging, ensuring durability in harsh outdoor or coastal environments.

Key Applications

Suitable for a wide range of industrial and engineering transport tasks: pumping mine slurry and tailings pond wastewater; port seawater transfer and dredging operations; municipal sewage transport and flood drainage systems; circulating water and process fluid supply in industrial plants; dewatering and fluid transfer at construction sites; agricultural irrigation, as well as water diversion and transfer projects.

Key Product Features

1. Versatile application (suction and discharge): compatible with both vacuum and pressure systems;

2. Steel spiral reinforcement: ensures resistance to negative pressure, preventing collapse or deformation during suction operations;

3. Wear-resistant inner liner: suitable for the long-term transport of challenging media containing solid particles and impurities;

4. High pressure resistance: meets the requirements for continuous operation under medium- to high-pressure conditions;

5. Flexible design: enables the installation of temporary pipelines across complex terrain;

6. Long service life: reduces the frequency of equipment replacement and lowers operating costs.

Customization Options

Adaptable to specific operating conditions: wear-resistant polyurethane (PU) inner liner; seawater corrosion-resistant, oil-resistant, and acid/alkali-resistant (chemically resistant) versions; antistatic and food-grade versions; support for various connection types: DIN/ANSI/JIS standard flanges or quick-connect couplings.

Key Product Advantages

1. Durable composite construction: designed for heavy loads and continuous 24/7 operation;

2. Combined suction and discharge capabilities: enhances engineering system flexibility and reduces procurement costs;

3. Wear and impact resistance: effectively withstands erosion from the pumped medium and external abrasive wear;

4. Wide range of applications: suitable for handling challenging media across various industries;

5. Customizable production: available in large diameters, non-standard sizes, and manufactured to specific technical requirements;

6. Extensive use in infrastructure, mining, and port projects worldwide.

Practical Application Examples

Example 1: Mine tailings transport project

At a large gold mining facility in Shandong Province, the Heavy Duty Suction and Discharge Hoses previously used wore out quickly due to erosion from solid particles and collapsed under negative pressure, requiring monthly replacement. After switching to JIDONGDA reinforced suction and discharge hoses featuring a wear-resistant polyurethane lining, tailings transport proceeded around the clock without any collapse or leakage issues for a full year, and equipment downtime was reduced by 80%.

Example 2: Port dredging project

In a dredging project at a seaport in southern China, JIDONGDA hoses—resistant to seawater corrosion—were used in conjunction with dredging equipment to pump and discharge seawater and seabed silt. Despite prolonged exposure to sea spray, wind, and waves, the outer coating of the hoses showed no signs of cracking or aging after 18 months of operation.

Frequently Asked Questions

Q1: Can the JIDONGDA Heavy Duty Suction and Discharge Hose be used for both suction and pressurized discharge operations?

A1: Yes. The product features internal steel-spiral reinforcement for negative-pressure resistance and multiple layers of fiber reinforcement to ensure high-pressure and burst resistance. Its design is engineered for both suction and discharge modes, allowing for seamless switching between water pumping and pressurized transport without the need to change hoses, ensuring compatibility with various mobile engineering equipment.

Q2: Are there specialized solutions available for use in seawater or chemically aggressive environments?

A2: Yes. We offer modified designs resistant to salt spray and seawater corrosion for marine environments; acid- and alkali-resistant variants for chemical applications; and models with an oil-resistant inner liner for environments involving petroleum products. All specialized models maintain the high performance characteristics typical of our standard heavy-duty products.

Q3: What types of fittings are compatible with this product?

A3: The hoses support two primary connection methods: flanges compliant with international standards (DIN, ANSI, JIS) for stationary systems, and quick-connect couplings for applications requiring frequent assembly and disassembly. An integral vulcanization process is used during the installation of fittings, guaranteeing that no detachment or leakage occurs during high-pressure operation.
