Hammer Union

In high-pressure oilfield and industrial pipeline operations, connection components are not passive fittings—they are active safety-critical elements responsible for maintaining system integrity under extreme pressure, vibration, and impact conditions.

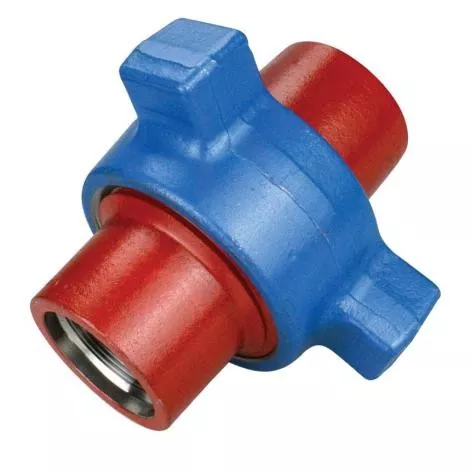

Hammer Union is engineered as a high-pressure quick connection system designed for applications where rapid assembly, reliable sealing, and operational safety are all required simultaneously. Unlike standard pipe fittings, it is specifically designed to withstand repeated high-pressure cycles and harsh field operating environments without compromising sealing performance.

Why High-Pressure Connection Failures Continue to Challenge Industrial Operations?

In oilfield and high-pressure fluid transfer systems, connection reliability directly affects operational safety, equipment performance, and project efficiency. Conventional pipe fittings often struggle to maintain stable sealing under extreme working conditions, especially when exposed to continuous vibration, pressure fluctuations, and repeated assembly. Even minor connection failures can interrupt production, increase maintenance costs, and create serious safety risks on site.

Hammer Union is specifically engineered to address these challenges through a robust mechanical locking structure and precision sealing technology. Its forged body and replaceable sealing system provide dependable performance in demanding environments where ordinary connections may fail.

Pressure Shock Resistance

Sudden pressure surges generated during pumping, fracturing, or drilling operations place tremendous stress on connection points. Hammer Union absorbs these dynamic loads while maintaining secure mechanical engagement, reducing the risk of unexpected disconnection.

Superior Vibration Stability

Continuous vibration from pumps, compressors, and drilling equipment can gradually loosen conventional threaded joints. Its locking mechanism minimizes movement between components, helping maintain long-term connection integrity.

Reliable Leak Prevention

Repeated pressure cycles accelerate seal wear in traditional fittings. Hammer Union utilizes precision-machined sealing surfaces and interchangeable elastomer seals to achieve consistent sealing performance and significantly reduce leakage risks.

Faster Maintenance Operations

Oilfield equipment requires frequent inspection and replacement. It enables rapid connection and disassembly without complex tools, minimizing downtime and improving maintenance efficiency.

Long-Term Structural Durability

Manufactured from forged carbon steel, alloy steel, or stainless steel, Hammer Union offers excellent resistance to fatigue, mechanical wear, and harsh operating environments, making it suitable for long-term industrial service.

Applications

Hammer Union is widely used wherever high-pressure fluid transfer requires secure, fast, and repeatable connections. Its versatile design makes it an essential component across upstream oil and gas operations as well as industrial fluid handling systems.

Oil Drilling Operations

Used for connecting high-pressure drilling lines, mud circulation systems, and surface pipeline networks while ensuring reliable fluid transmission during continuous drilling activities.

Hydraulic Fracturing Equipment

Installed on frac trucks, manifold systems, and high-pressure pumping units where rapid assembly and dependable sealing are essential for efficient fracturing operations.

Cementing Systems

Provides secure connections between pumps, cementing units, and wellhead equipment, supporting stable slurry delivery under elevated pressure conditions.

Wellhead Equipment

Widely applied in wellhead flowline systems, choke and kill lines, and production testing equipment requiring high mechanical strength and leak-free performance.

Offshore Oil & Gas Platforms

Stainless steel Hammer Union models are suitable for offshore environments where corrosion resistance, structural reliability, and long service life are critical.

Industrial High-Pressure Pipelines

Also used in mining, chemical processing, energy transportation, pressure testing systems, and other industrial applications involving high-pressure liquid or gas transfer.

Technical Specifications

Frequently Asked Questions

Q1. Which FIG models do you supply?

We supply a comprehensive range of Hammer Union models, including FIG 100, FIG 200, FIG 206, FIG 300, FIG 400, FIG 602, FIG 1002, FIG 1502, as well as customized configurations based on project requirements.

Q2. What materials are available?

Depending on the application, Hammer Union can be manufactured from forged carbon steel, alloy steel, or stainless steel. Different sealing materials such as NBR, HNBR, and FKM are also available to meet various operating environments.

Q3. Is the sealing ring replaceable?

Yes. The sealing element is designed for easy replacement during routine maintenance, helping reduce maintenance costs while extending the overall service life of the connection system.

Q4. Do you offer customized Hammer Union solutions?

Yes. We provide OEM and ODM manufacturing services, including customized sizes, pressure ratings, materials, sealing configurations, and branding according to customer specifications.

Q5. What quality inspections are performed before delivery?

Each Union undergoes strict quality control procedures, including dimensional inspection, material verification, pressure testing, sealing performance testing, and appearance inspection to ensure reliable field performance.
