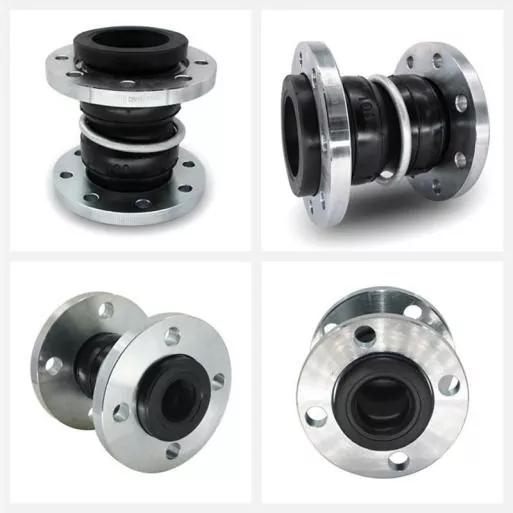

Double Sphere Composite Expansion Joint

The unique double-sphere composite reinforced structure is the upgraded version of traditional single-sphere expansion joints, tailored for high-vibration, frequent start-stop, and complex layout pipeline systems. The Double Sphere Composite Expansion Joint delivers unparalleled comprehensive performance in industrial pipeline protection:

Larger Movement Compensation Capacity: Supports larger axial, lateral, and angular displacement to adapt to complex pipeline deformation.

Uniform Pipeline Stress Distribution: Double-sphere symmetrical structure disperses concentrated flange stress, avoiding local overpressure damage.

Superior Vibration Damping & Noise Reduction: Dual flexible spheres double the energy absorption effect, effectively isolating equipment vibration transmission.

Stronger Anti-Fatigue Performance: Adaptable to frequent cyclic operation, greatly extending service life in dynamic working conditions.

Higher Operational Stability: Reduces pipeline displacement deviation and leakage risks in long-term continuous operation.

Professional Product Features and Structural Design

Our double sphere composite expansion joint adopts multi-layer fabric reinforced composite technology and precision integral molding process, integrating flexibility, pressure resistance, corrosion resistance and stability in one product.

Dual Sphere Flexible Structure: Enhances multi-directional displacement compensation ability to adapt to thermal deformation and pipeline installation deviation.

Multi-Layer Composite Reinforced Body: Optimizes internal fiber reinforcement structure, improving overall pressure resistance and structural toughness without losing flexibility.

Efficient Vibration Isolation Function: Blocks vibration and noise propagation from pumps, motors and mechanical equipment to protect the entire piping network.

Precise Thermal Expansion Compensation: Absorbs pipeline expansion and contraction caused by high and low temperature changes to prevent structural extrusion and cracking.

Multi-Media Corrosion Resistance: High-quality composite rubber materials adapt to water, air, oil, and mild chemical industrial fluids.

Global Standard Flange Compatibility: Supports ANSI, DIN, JIS international standard flanges and customized flange specifications for global project docking.

Strict Real-World Performance Testing and Quality Verification

All our Double Sphere Composite Expansion Joints undergo full-scenario industrial simulation tests before delivery to ensure stable performance under actual working conditions, meeting international industrial pipeline safety standards:

Pressure Cycling Test: Repeated variable pressure tests simulate long-term pipeline pressure fluctuations to verify pressure resistance stability.

Multi-Directional Movement Simulation Test: Professional equipment applies axial, lateral and angular displacement to detect flexible compensation performance.

Vibration Isolation Performance Test: Simulate industrial equipment vibration frequency to confirm effective vibration energy absorption.

Structural Fatigue Endurance Test: Continuous cyclic operation tests verify long-term durability and no deformation failure.

Official Test Results: All Double Sphere Composite Expansion Joints maintain stable structural integrity, reliable sealing, consistent elasticity and excellent vibration reduction under dynamic industrial conditions.
