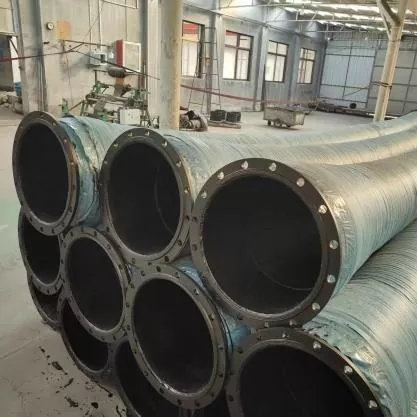

Steel Wire Spiral Reinforced Large Diameter Rubber Hose

The JIDONGDA Steel Wire Spiral Reinforced Large Diameter Rubber Hose is designed for heavy-duty applications characterized by high pressure, high flow rates, and significant impact loads. Its construction features a multi-layer reinforcement structure made of high-strength steel wire combined with high-performance composite rubber; all components are formed through a single high-temperature vulcanization process. This ensures stable and durable performance in demanding environments, such as mines, coastal areas, and open-air construction sites.

The Steel Wire Spiral Reinforced Large Diameter Rubber Hose combines excellent flexibility with high load-bearing capacity. It absorbs equipment vibrations, compensates for installation misalignments and thermal expansion or contraction, and withstands constant internal pressure surges as well as external impacts. Compared to standard fabric-reinforced rubber hoses, this product offers significant advantages: resistance to vacuum collapse, dimensional stability (resistance to stretching), and high wear resistance. This makes it a critical component of large-scale industrial pipelines designed for transporting slurry and bulk materials over long distances.

Multi-layer structure and key advantages

1. Wear-resistant inner working layer

Made from a blend of highly wear-resistant natural and synthetic rubber, the smooth inner layer minimizes flow resistance. It resists erosion and abrasion from sand and gravel particles, slowing the wear of the inner wall when in contact with materials such as mineral ore, marine silt, and ash deposits.

2. Spiral steel wire reinforcement layer

Multiple strands of high-strength steel wire are spirally wound at a fixed angle, forming the primary load-bearing framework that performs four key functions:

- Increases the rated pressure

- Ensures high resistance to negative pressure, preventing collapse during suction operations

- Limits radial expansion of the hose body under pressure

- Enhances overall structural stability and impact resistance

3. Intermediate buffer layer

An elastic rubber layer situated between the reinforcement layer and the outer rubber cover; it dissipates the impact of instantaneous pressure surges, reduces the risk of layer separation, and significantly improves fatigue resistance during prolonged cyclic fluid pumping.

4. Weather-resistant outer protective layer

A modified, aging-resistant outer rubber cover designed to withstand various external factors: UV degradation from environmental exposure, ozone cracking in industrial zones, salt spray corrosion in coastal areas, and mechanical abrasion during lifting and installation.

Key Application Areas

1. Mining industry transport systems: transport of mineral slurry, tailings, coal slurry, and processing materials; suitable for pumping high-sand-content slurries and vacuum operations.

2. Port dredging and land reclamation: used with dredge pipelines to transport marine sand, river silt, and fill materials; floating pipeline configurations available for offshore operations.

3. Oil and gas industry: transport of drilling mud, industrial circulating fluids, and related materials.

4. Engineering machinery and pumping stations: pipeline connections for large dredgers, industrial water pumps, and heavy equipment; vibration dampening during operation.

5. Energy and environmental sectors: slurry circulation for power plant desulfurization, furnace ash/slag transport, and industrial waste treatment piping.

6. Metallurgical industry: continuous transport of highly abrasive mineral powders and granular smelting media.

Key Product Features

1. Multi-layer spiral steel wire construction providing superior resistance to pressure and impact.

2. Excellent negative pressure resistance; suitable for both suction and discharge applications, preventing hose collapse under vacuum.

3. Capability for large-diameter production; low fluid resistance ensures higher transport efficiency.

4. High flexibility and compensation capabilities; absorbs equipment vibration and eliminates stress concentrations in the piping system.

5. Integrated wear and weather resistance; ensures reliable service life in harsh environments such as mines and offshore platforms.

6. Low maintenance costs; ease of installation, removal, and on-site fitting replacement minimizes equipment downtime.

Custom configuration options

1. Enhanced polyurethane (PU) inner lining.

2. Specialized ultra-wear-resistant design for mineral slurry pumping.

3. Heat-resistant version (for continuous operation at temperatures above 120°C).

4. Oil-resistant rubber compound.

5. Anti-static and explosion-proof design.

6. Integrated buoyancy system (floating hoses).

7. ANSI, DIN, JIS, or BS standard flanges.

8. Universal quick-connect couplings.

Competitive Advantages

✔ Robust construction featuring multi-layer reinforcement with a high-strength steel wire helix

✔ Excellent resistance to both positive pressure and vacuum

✔ Suitable for use in diverse and demanding industrial conveying applications

✔ Capability to manufacture custom, large-diameter products for extreme operating conditions

✔ Comprehensive OEM and ODM manufacturing services

✔ Extensive experience supplying equipment for domestic and international engineering projects

Example of an engineering project implementation

Example 1: Land reclamation project at a seaport (Southeast Asia)

Project requirements: A 12 km long marine pipeline was required for land reclamation, designed for the continuous transport of marine sand mixed with crushed shell and gravel. Large-diameter floating suction and discharge hoses had to withstand exposure to salt spray and operate under suction conditions (negative pressure).

JIDONGDA Solution: DN600 steel-wire reinforced floating rubber hoses featuring a highly corrosion-resistant outer rubber layer (marine grade) and DIN-standard flanges.

Operational Results: 24 months of continuous operation with no hose deformation (flattening) and no cracking of the outer rubber layer due to salt spray exposure. Replacement frequency was reduced by 70% compared to conventional dredging hoses. The products successfully passed independent quality inspections for marine engineering applications and have become the contractor's preferred choice.

FAQ

Q1: What is the maximum negative pressure rating for JIDONGDA's Steel Wire Spiral Reinforced Large Diameter Rubber Hose? Are they suitable for long-distance suction operations in dredging?

A: Standard models withstand negative pressure of -0.09 MPa without deformation, while custom-made models with reinforced spiral structures can operate under deep vacuum conditions of up to -0.098 MPa. They are fully suitable for suction and discharge operations, including long-distance dredging and mine tailings transport. Additional buoyancy elements can be installed for long-distance marine transport.

Q2: What options are available for handling high-temperature, oily, or flammable/explosive media?

A: Three types of specialized solutions are offered: high-temperature resistant designs (for continuous operation above 120°C); products made from oil-resistant composite rubber based on nitrile rubber (NBR) for transporting crude oil, hydraulic oils, or organic solvents; and anti-static, explosion-proof designs engineered to dissipate static electricity generated by media friction (suitable for handling flammable petroleum products). Test reports covering material properties and performance characteristics are provided for all specialized products.

Q3: Which international standards for couplings are the products compatible with? Can the JIDONGDA factory supply fully assembled units?

A: The hoses are compatible with four major flange standards (ANSI, DIN, JIS, BS) as well as various types of quick-connect couplings. We offer a comprehensive solution that includes cutting, flange pressing, monolithic vulcanization assembly, and hydrostatic testing; the finished products—complete with fittings—are delivered directly to the site, eliminating the need for further processing by the customer and reducing the risk of leaks at external connection points.
