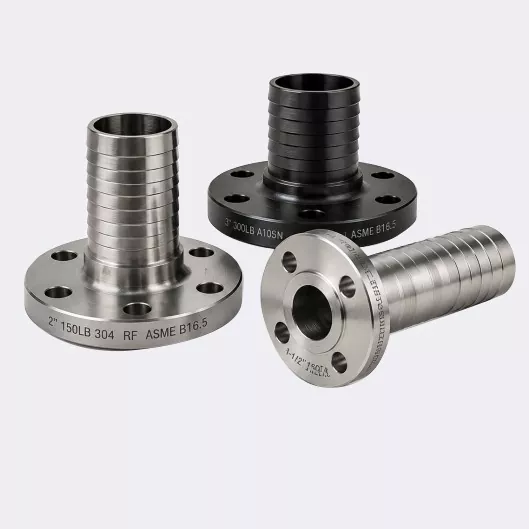

Flanged Hose Connector

Flanged Hose Connectors are engineered as hybrid interface components that combine the structural strength of flange connections with the flexibility of reinforced hoses, enabling stable, high-capacity fluid transfer between fixed pipelines and dynamic equipment systems. Unlike standard hose fittings, this structure is specifically designed to absorb mechanical stress while maintaining secure sealing performance under continuous flow and pressure variation conditions. They are widely used in industrial systems where high flow rate, movement compensation, and connection reliability must coexist.

Specification Table

System Stress Perspective

In large-scale industrial fluid systems, failure rarely originates from the hose itself or the flange itself, but from the stress transition zone between rigid pipelines and flexible components. When rigid pipe structures are forced to absorb vibration, thermal expansion, or mechanical movement, stress is concentrated at connection points, gradually leading to fatigue cracks, leakage, or structural deformation.

Flanged Hose Connector is designed specifically to eliminate this structural imbalance. By introducing a controlled flexible transition between rigid flange interfaces and high-strength hoses, it redistributes mechanical stress across the entire connection system instead of concentrating it at a single failure point. This fundamentally improves pipeline stability in dynamic working environments such as ports, chemical plants, and mining slurry systems.

Fluid Behavior Perspective

In high-flow industrial systems, fluid behavior is not always stable when passing through rigid connection points. Sudden diameter changes, misalignment between flanges, and vibration-induced micro-movement can all disrupt flow consistency, resulting in pressure loss, turbulence, and long-term efficiency reduction.

Flanged Hose Connector improves flow continuity by integrating a smooth transition structure between flange and hose sections. This design reduces internal turbulence and maintains more stable flow characteristics even under continuous high-volume transfer conditions. In applications such as oil terminals, bulk liquid loading systems, and power plant cooling circuits, this stability directly contributes to higher system efficiency and reduced energy loss.

Mechanical Integrity Perspective

Unlike standard hose fittings or rigid flange adapters, Flanged Hose Connector is engineered as a hybrid mechanical system that must simultaneously achieve flexibility, sealing reliability, and tensile strength. The most critical challenge is preventing hose pull-out and maintaining flange sealing integrity under dynamic load conditions.

To address this, the structure is reinforced at multiple stress-bearing points, ensuring that tensile forces generated by internal pressure or external movement are distributed evenly across the assembly. At the same time, precision-machined flange surfaces ensure consistent sealing performance even under vibration and misalignment conditions. This combination allows the connector to maintain structural integrity in harsh environments such as shipbuilding yards, mining operations, and offshore fluid systems.

Lifecycle & Maintenance Perspective

In industrial infrastructure, the true cost of a connection system is not defined by initial installation, but by long-term maintenance frequency, downtime impact, and replacement cycles. Traditional rigid connection systems often require frequent inspection due to vibration fatigue, seal degradation, or misalignment-related leakage.

Flanged Hose Connector significantly reduces lifecycle cost by minimizing stress concentration and extending system durability. Its flexible structure absorbs operational movement, which reduces wear on both the hose and flange interfaces. This results in fewer maintenance shutdowns, longer service intervals, and improved system reliability over time. For large-scale industrial users, this translates directly into lower total operating cost and higher system uptime.

Product Role in Industrial Fluid Infrastructure

Flanged Hose Connector functions as a critical transition interface in modern fluid engineering systems. It is not simply a connector, but a structural balancing component that ensures rigid pipelines and flexible hoses can operate together without introducing system instability.

It is widely used in environments where fluid systems must handle both high flow volume and continuous mechanical stress, especially in infrastructure where downtime is costly and operational continuity is essential.

Frequently Asked Questions

Q1: What is the main function of a Flanged Hose Connector?
It connects rigid flange systems with flexible hoses while maintaining stable sealing and reducing stress at transition points.

Q2: Why not use a standard flange or hose adapter?
Standard rigid connectors cannot absorb vibration and movement stress, which often leads to leakage or fatigue failure over time.

Q3: Can it be used in high-flow systems?
Yes, it is designed specifically for large-volume fluid transfer applications such as oil terminals and industrial pipelines.

Q4: Is it suitable for vibration environments?
Yes, the structure is engineered to absorb mechanical vibration and reduce stress concentration at connection points.

Q5: Does it support customization?
Yes, OEM customization is available for different sizes, materials, and project-specific engineering requirements.
