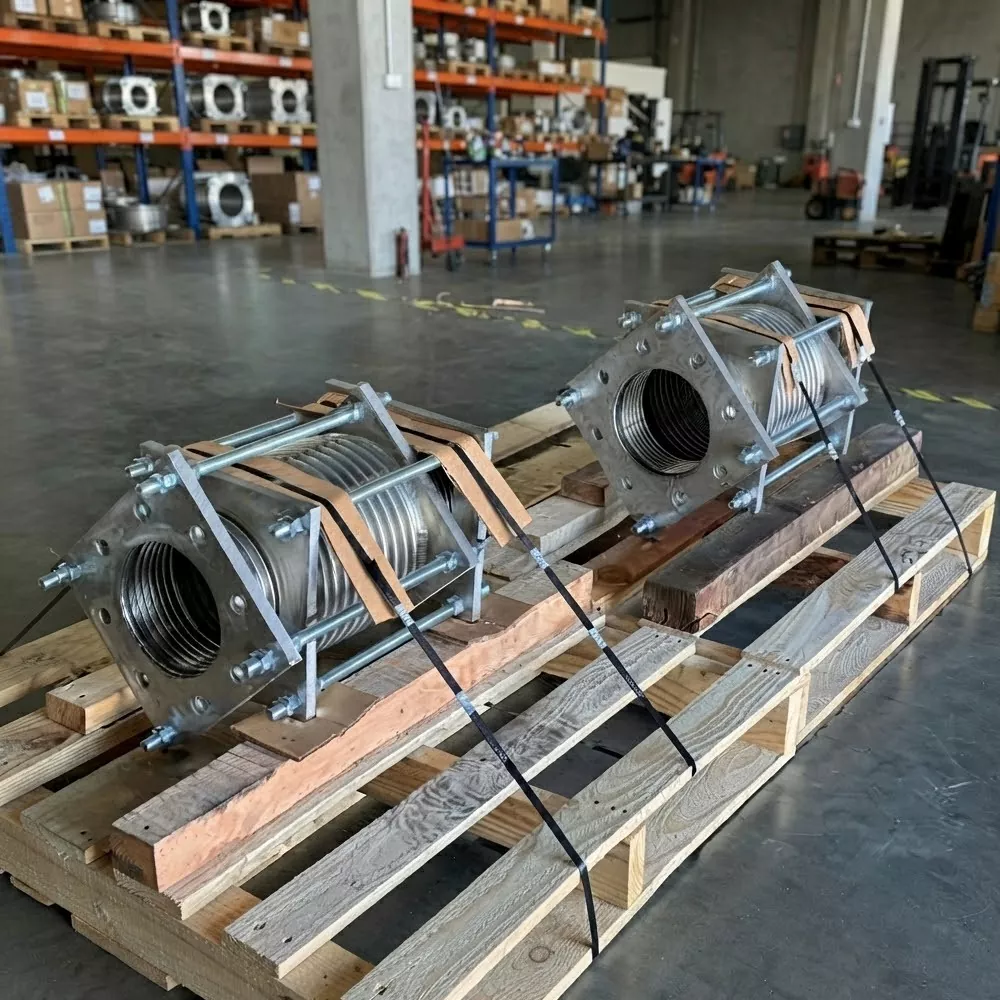

Corrugated Metal Expansion Joint

In today's industrial infrastructure, pipelines are operating under harsher working conditions including higher process temperatures, frequent start-stop cycling, compact installation spaces, intense equipment vibration and complicated multi-directional thermal displacement, and rigid piping structures fail to buffer these forces, which will trigger a series of problems such as weld seam fatigue, flange leakage, stress-induced equipment misalignment, long-term pipe deformation and unexpected system shutdown risks, while Corrugated Metal Expansion Joint creates a controllable deformation area to shield the whole pipeline system from accumulated thermal and mechanical stress.

Core Advantages

Excellent performance under high-temperature conditions
Absorbs thermal expansion and mechanical stress
Reduces pipeline weld fatigue risk
Suitable for compact installation environments
Strong vibration and pressure resistance
Long service life under cyclic conditions
Engineering-grade structural stability
OEM customization available

Technical Specifications

Application Industries

Corrugated Metal Expansion Joint is widely adopted across diverse heavy industrial sectors to resolve thermal displacement, mechanical vibration and pipeline stress issues, with typical application scenarios covering petrochemical processing systems, power generation plants, steam and boiler pipeline systems, high-temperature HVAC circuits, industrial furnace equipment, oil & gas processing facilities, chemical industry pipelines, marine engineering systems, mechanical equipment connection systems and high-temperature fluid transport systems. These metal expansion joints effectively absorb thermal expansion, isolate equipment vibration and eliminate pipeline deformation risks under high-temperature, high-pressure and complex working conditions, securing long-term stable operation of all fluid transmission pipelines in the above industries.

Manufacturer Introduction

JIDONGDA produces industrial metal expansion joints for thermal stress compensation, vibration isolation and high-temperature pipeline scenarios, with a full product lineup covering Corrugated Metal Expansion Joint, Stainless Steel Bellows Expansion Joint, small-diameter Threaded Metal Expansion Joint, Flanged Metal Expansion Joint, High-Pressure Flexible Metal Connector and custom engineered metal compensation systems; all items are processed via precise hydroforming and hydraulic forming techniques to deliver consistent corrugated structures and reliable fatigue resistance, and we distribute these products to industrial clients across North America, South America, Europe, Southeast Asia and the Middle East.

Frequently Asked Questions

Q1: What is the main function of corrugated metal expansion joint?

A: It compensates thermal expansion and mechanical movement in high-temperature pipeline systems.

Q2: Where is threaded type used?

A: It is mainly used in small-diameter pipelines, equipment connections, and compact systems.

Q3: Can it handle steam applications?

A: Yes, stainless steel bellows are widely used in steam and boiler systems.

Q4: What is the main advantage over rubber expansion joints?

A: It can withstand much higher temperatures and pressures.

Q5: Can it be customized?

A: Yes, material, size, pressure rating, and connection type can be customized.
